XL-Z60, Z90, Z160 Oscillating Granulator

The machine can make granules from wet power materials or break down the dry lumpish material,which is widely used by the industries of pharmacy,chemical and foodstuff.
INQUIRY

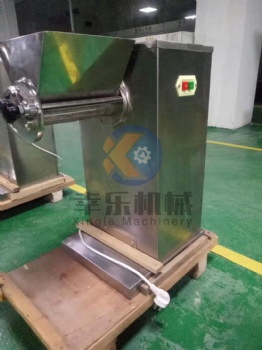

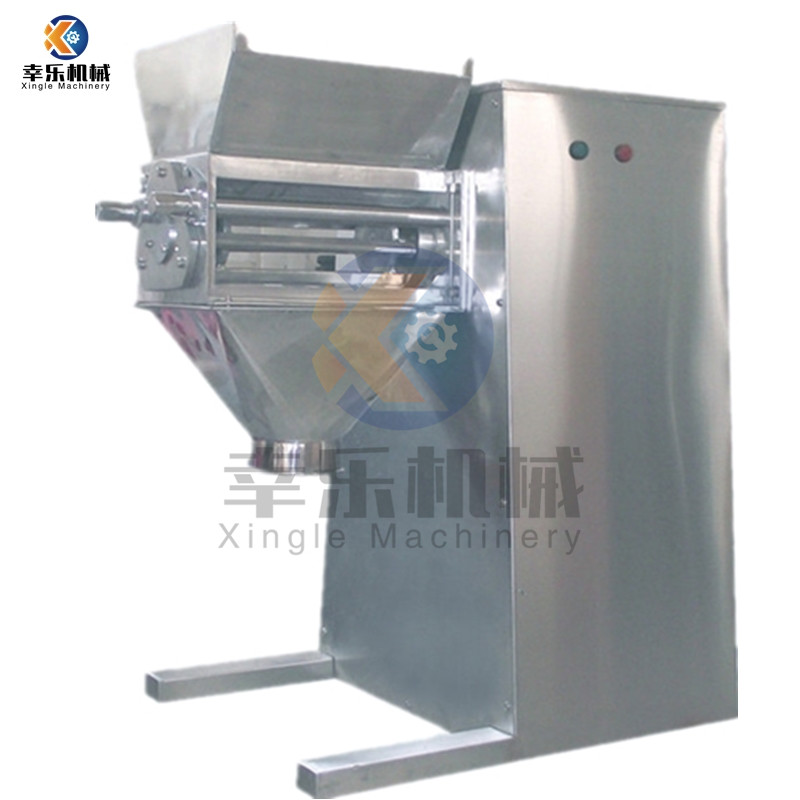

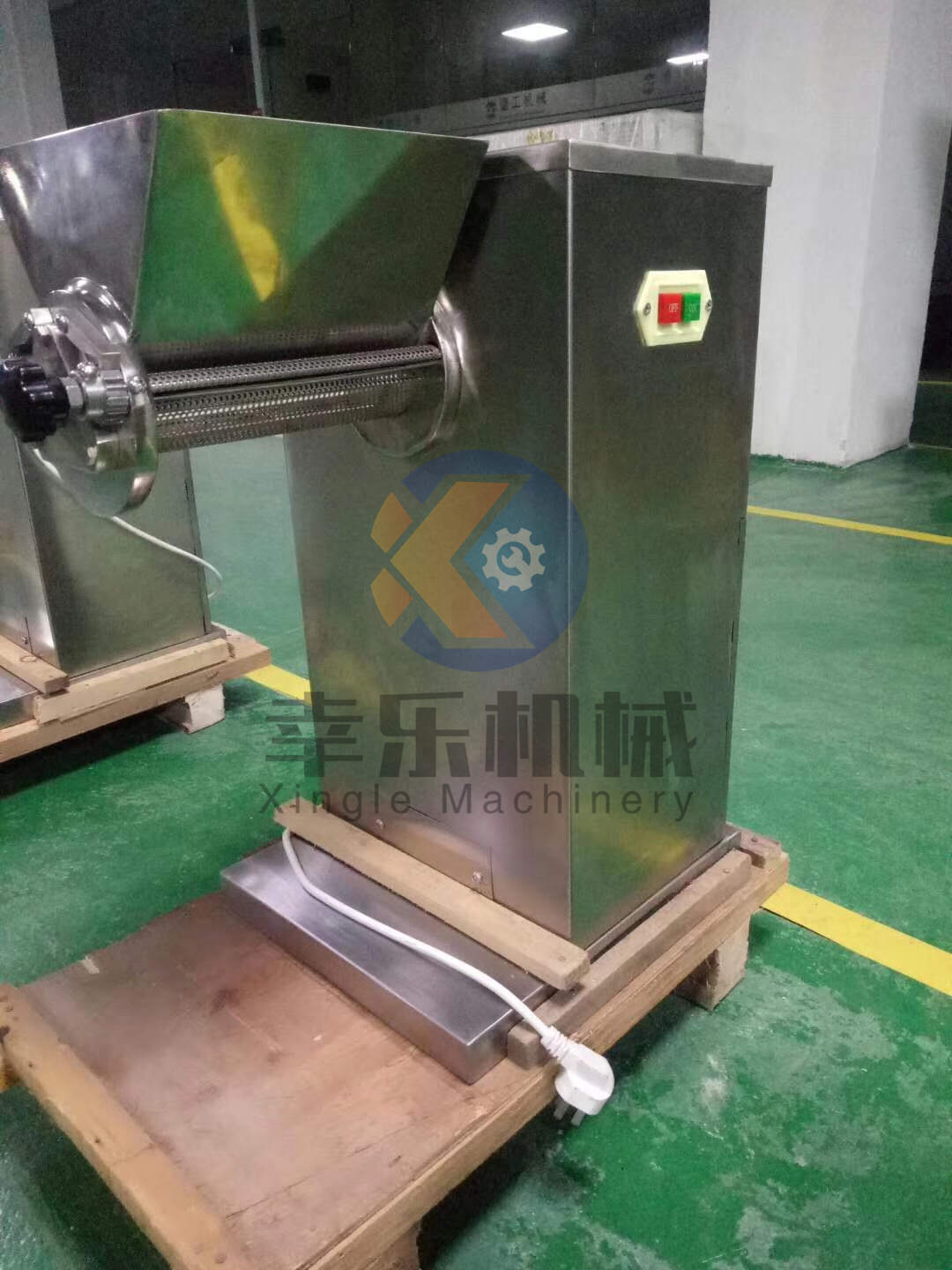

XL-Z60, Z90, Z160 Oscillating Granulator for Pharmaceutical plant

Main application:
The machine can make granules from wet power materials or break down the dry lumpish material,which is widely used by the industries of pharmacy,chemical and foodstuff.

Operating principle:

1. The screen of the machine is easy to assemble and disassemble and its tightness can be adjusted properly. The speed of the rotating seven-angle roller is adjustable.
2. The seven-angle roller is easy to assemble and disassemble, so it facilitate the cleaning and maintenance work.
3. The mechanical transmission system is totally closed inside the machine and it is provided with the lubrication system, so that the whole machine can operate stably.
4. This machine is designed and manufactured according to GMP requirements for medicine production. It a new type of granule making machine.
5. The entire outside of the machine is sealed with high quality 304 stainless steel plate. The appearance of the whole machine is clean and beautiful.
6. In particular, the screen of the machine is made of steel wire and stainless steel plate, so it can make greatly increase the granule quality and make economic benefits.

Main Parameter

Model	XL-Z60	XL-Z90	XL-Z60
Capacity(kg/h)	20-30	50-70	200-300
Motor power(kw)	0.55	1.1	2.2
Oscillating Times (times/min)	46	50	55
Oscillating amplitude (^o)	>360	>360	>360
Roller Diameter (mm)	60	60	60
Weight(kg)	65	150	360
Overall Size(L×W×H)(mm)	460550570	460750840	9705601240
