XL-KW-101 Servo Type One with One Automatic Outer Ear Face Mask Production Line

XL-KW-101 Servo Type One with One Automatic Outer Ear Face Mask Production Line

The automatic production mainly includes coil feeding, folding and pressing, nose bridge bar cutting, mask forming, mask cutting, outer ear loop feeding and welding, and finished product unloading to complete the whole production process from raw materials to finished masks
INQUIRY


XL-KW-101

Servo Type One with One Automatic Outer Ear Face Mask Production Line consists of 1 set of face mask making machine, and 1 set of face mask outer ear loop welding machine.

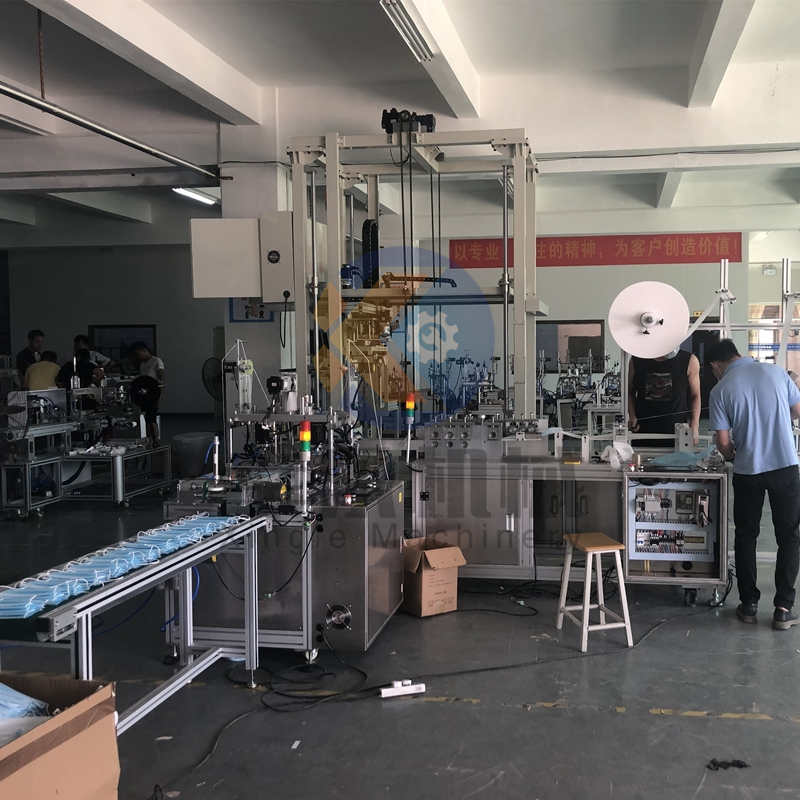

Servo Type One with One Automatic Outer Ear Face Mask Production Line is one outer ear face mask body making machine connected by one outer ear mask ear loop welding machine. When the mask body is made, the transmission belt will convey the mask to the outer ear loop welding machine for the welding of the outer ear loop. The automatic production mainly includes coil feeding, folding and pressing, nose bridge bar cutting, mask forming, mask cutting, outer ear loop feeding and welding, and finished product unloading to complete the whole production process from raw materials to finished masks. The mask has the advantages of comfortable wearing, no pressure and good filtering effect. It can be applied to medical and health, electronics, mining, construction and other industries.

The face mask body forming machine includes coil material automatic feeding system, folding forming system and side knurling system. The mask body forming machine has the function of coil material automatic feeding, integration of multi-layer fabric,compress the fabric after folding, side knurling of face mask and cutting.

Product Paramenters

Model:	XL-KW-101
Machine size：	5000 ×1800 × 2000mm
rated power	6.5KW
capacity	80-100 pcs/min
mask size	175*95 mm
Equipment weight	~700kg
Working power supply	220VAC ± 5%, 50/60Hz,
operating environment	temperature 10-35 ℃, humidity 5-35% HR, no combustible, corrosive gas, no dust (cleanliness no less than 100000 grade)
Qualification rate of product	99% (except that the incoming materials do not meet the requirements and the employees do not operate properly)
Equipment failure rate	2% (refers to the failure caused by the equipment itself)

Main Features

1. Automatic counting can effectively control production efficiency and progress.
2. The frame is made of aluminum alloy, which is light and beautiful without rusting.
3. Variable frequency control can adjust the running speed of the mask body making machine according to the actual needs.
4. The ear loop is fed through the help of a motor which is more accuracte in length control, and save cost.
5. The length and dimension of the finished product is controlled uniformly with tolerance of ± 1mm, which can effectively control the length of the finished product.
6. The equipment is highly automated and requires low level of operation staff. The finished mask is automatically stacked, and number of each stack can be set. It only needs the operator to place and finish the finished products.
7. The mask making machine adopts the ultrasonic system and transducer, and the machine is of stable performance and easy operation.
8. The automatic ultrasonic welding roller is made of high-quality steel, which prolongs the service life of the weld plate and makes it wear-resistant and durable.
