Water-soluble Pod/Pouch Packaging Machine

Product description:

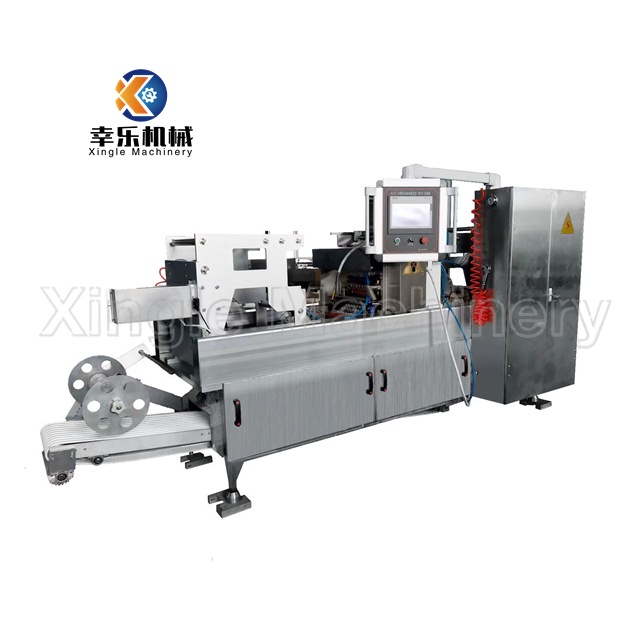

This equipment produce water-soluble packaging for liquid, gel and powder products in water-soluble films.Water-soluble film is a thin film used to form packages which dissolve in contact with water.The PVA water-soluble film is widely used to pack liquid laundry detergent,disinfectant,missible oil pesticide,oil chemicals agent,paint and some other non aqueous oil system, applicable for a large range of size and shape.The machine can automaticly accomplish film stretch,pod making ,material filling, sealing and cutting,etc.It is a rotary drum/water-sealing type packaging machine designed for small unit-dose/single pack of water soluble pod/pouch/capsule.The producing capacity is 10000-15000 packs per hour,depends on the content state and size of package. Each of the packaging machine can be made in various shape and size.

Features:

1.The equipment is equipped with Shanghai Zhongde 200 external high vacuum pollution-free vacuum pump.

2. Power off phase and reverse phase protection.

3. Integral side plate support made of aluminum alloy with high strength and good straightness.

4. Pneumatic tensioning mechanism, pneumatic brake, prestress adjustable for both top film and bottom film.

      5.Equiped with film trim winder.

6. Equipped with films deviation automatic correction system.

7. Equipped with film tension regulation system, the computer can automatically identify sizes of rollers, automatically adjust the tension of the films to keep the same stress of upper and lower films.

8.Equipped with automatic liquid filling system. And automatic particle filling system.

      9.Equipped with a set of three-cavity mold.

     10. Electric leakage protection system, automatically cut off the power supply when it occur, to protect safety of operators.

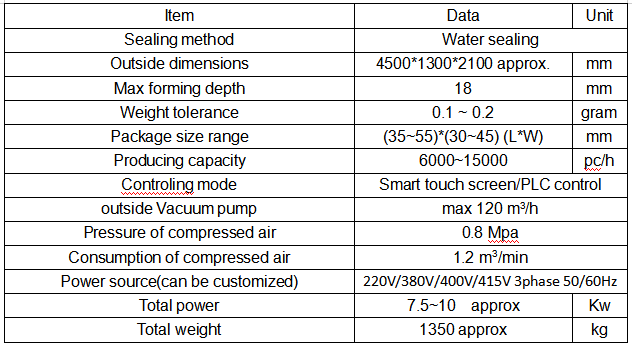

Product Parameters：

Application Areas：

1.Agriculture: In the planting industry, water-soluble pods can be used to package agricultural products such as seeds and fertilizers. When sowing, farmers only need to bury the pods in the soil. As the irrigation water penetrates, the pods will gradually dissolve, releasing the seeds or fertilizers evenly into the soil for easy absorption and utilization by plants.

2.Gardening: The use of water-soluble pods in gardening can simplify the fertilization process and improve fertilizer utilization. The pods are filled with slow-release fertilizers and buried in the flower beds or soil. As the water penetrates, the fertilizers gradually dissolve and supply nutrients to the plants.

3.Personal care products: In the field of personal care, water-soluble pods can be used to package liquid products such as shower gel and shampoo. When consumers use them, they only need to put the pods in the shower water, and the products will dissolve quickly, which is convenient and hygienic.
