deduster

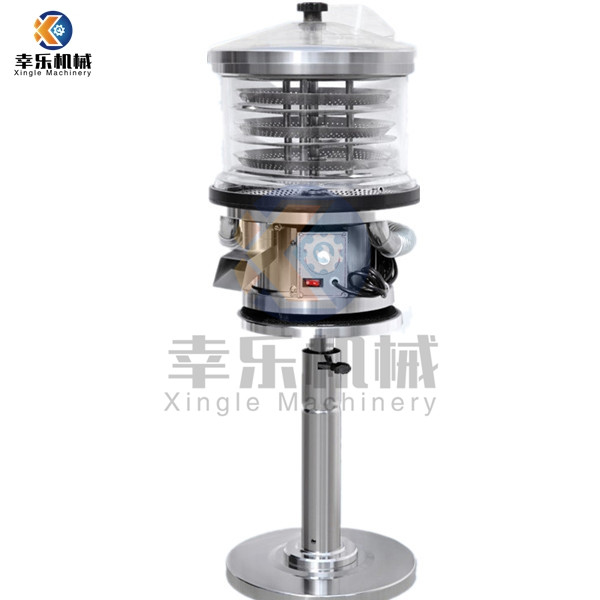

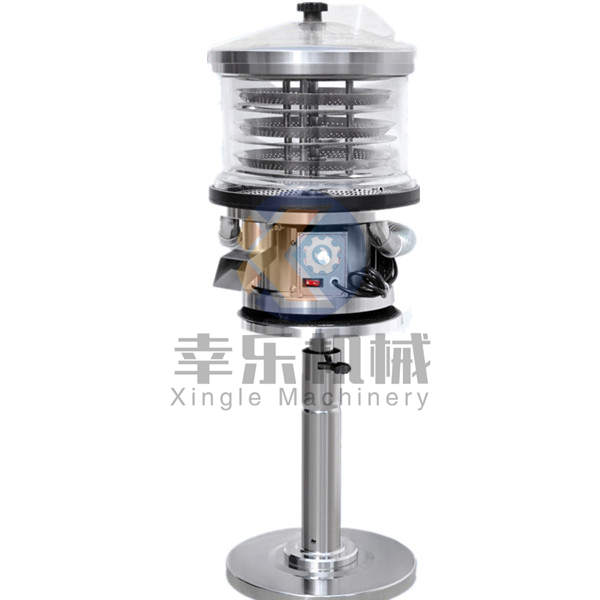

CFQ310 Dust removal equipment

The CFQ310 machine is capable of removing the dust on various shapes of tablets. It is widely applied for trial production and small batch production in pharmaceutical plants, chemical plants, food plants, hospitals,scientific research institutes and laboratories.
INQUIRY

dust remove_鍓湰_鍓湰_鍓湰.jpg

Model	CFQ-310
Max. production efficiency(t/h)	55000(φ6mm Tablet)
Max. tablet diameter(mm)	25
Power supply	1P 220/110V 50-60Hz
Compressed air	0.1m³/min 0.05MPa
Vacuum cleaning	2.7m³/min 0.01MPa
Overall dimensions(mm)	φ350*(H:770-950)
Machine weight(kg)	38

The CFQ310 machine is capable of removing the dust on various shapes of tablets. It is widely applied for trial production and small batch production in pharmaceutical plants, chemical plants, food plants, hospitals,scientific research institutes and laboratories.

MAIN FEATURE

1. It has a transparent cover so that the whole dust removing process can be seen directly and clearly.

2. The tablets and dust isolating devices are additionally placed among all layers of the sieve plates to realize the effective
separation of tablets and the dust.

3. The parts in the machine that contact the medicine are all made of SUS316L/SUS304 stainless steel.

4. It can work with any models of tablet press machine.
