ZWS-137 Tablet sieving Machine

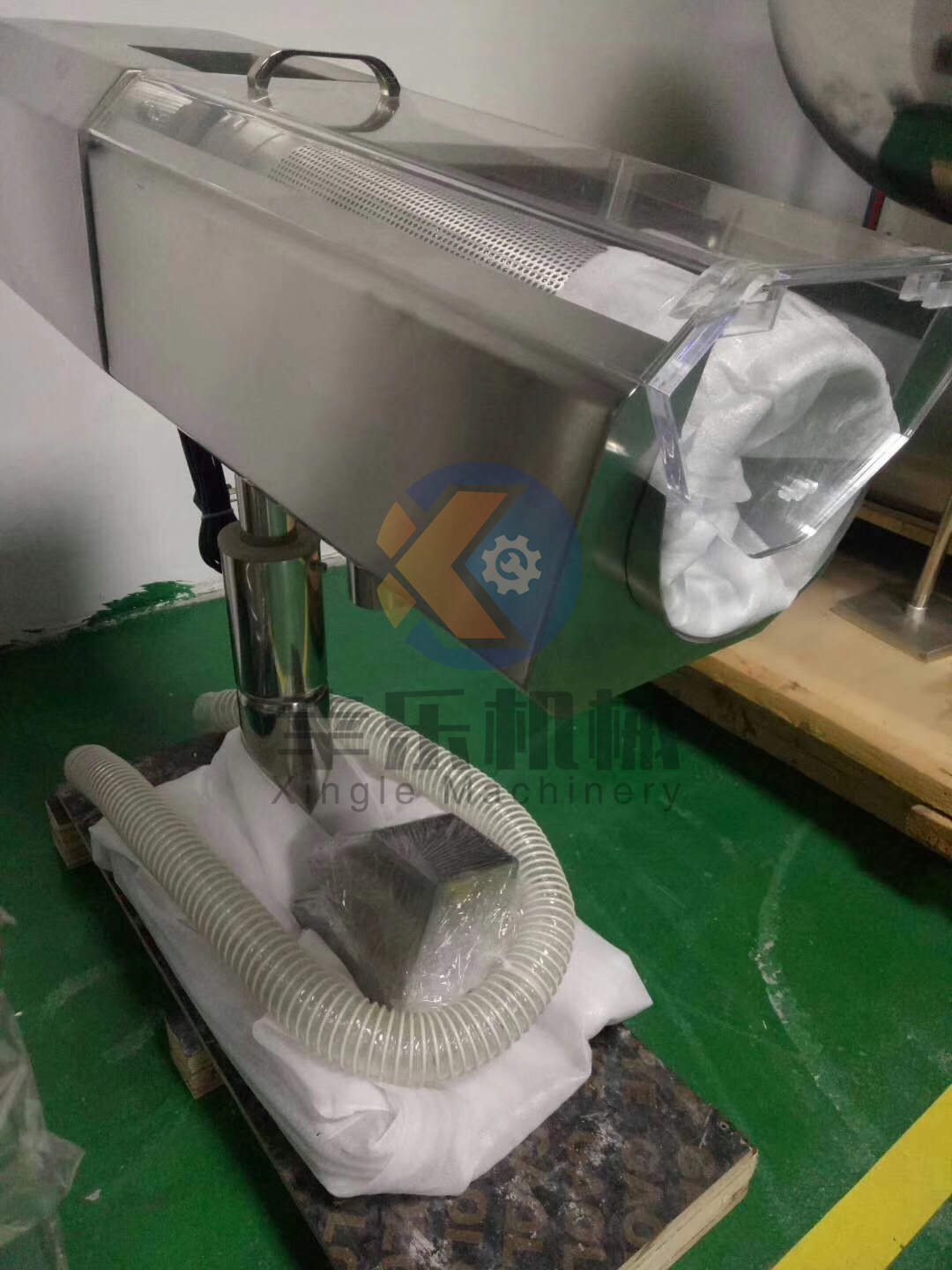

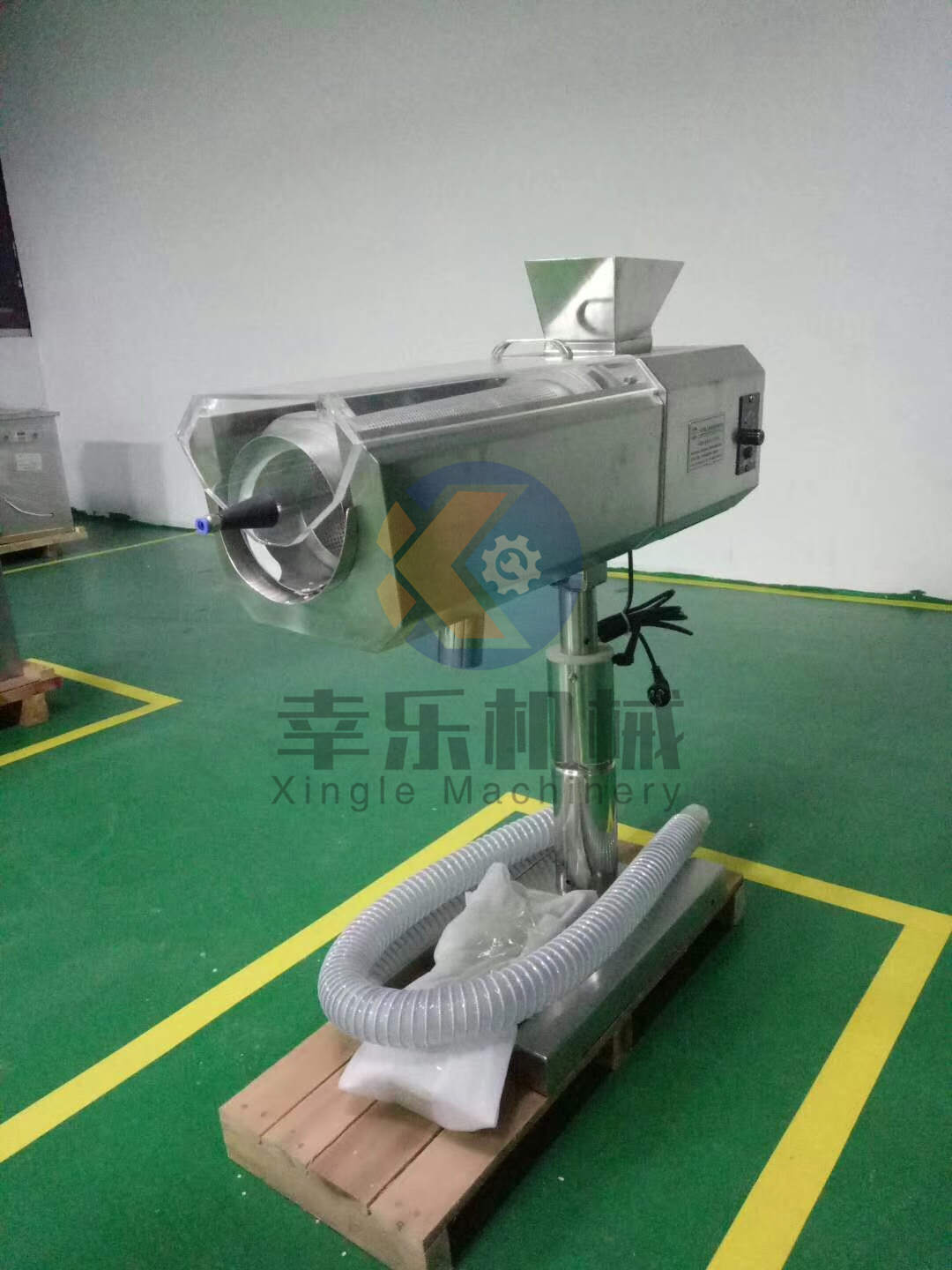

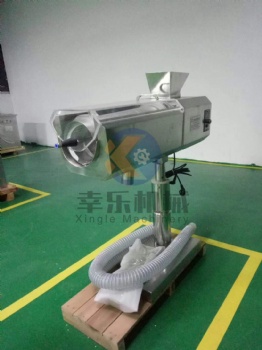

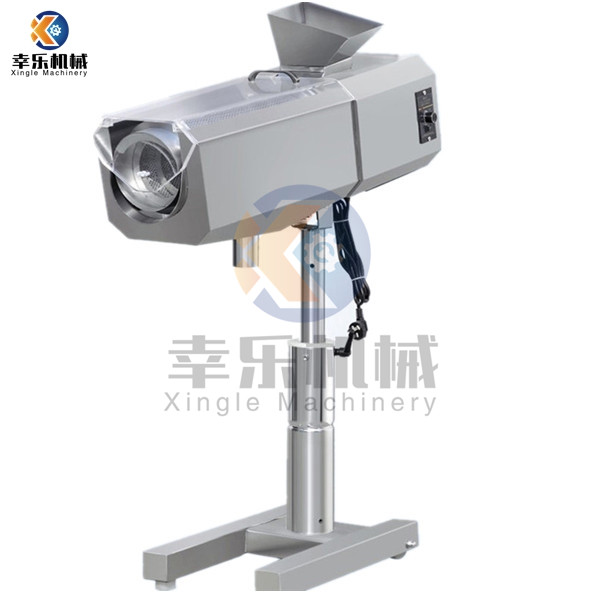

The tablet sieving and conveying process is completed inside a sieving box with a closed structure. When it works, the sieving boxand material inlet and outlet are under negative pressure status without dust emission. The sieving box and power box are totallyisolated from each other. The quick disassembled structure makes it convenient to disassemble, install and clean the machine.
INQUIRY

Model	ZWS-137
Motor Power (W)	60
Sieving Cylinder Diameter (mm)	130
Sieving Cylinder Rotation Speed (rmp)	0~30
Overall Size (mm)	750x320x1030
Weight (kg)	37

Main Features

The tablet sieving and conveying process is completed inside a sieving box with a closed structure. When it works, the sieving boxand material inlet and outlet are under negative pressure status without dust emission. The sieving box and power box are totallyisolated from each other. The quick disassembled structure makes it convenient to disassemble, install and clean the machine.

The parts that contact the medicine are all made of stainless steel, meeting the requirements for pharmaceutical equipment in GMP.
