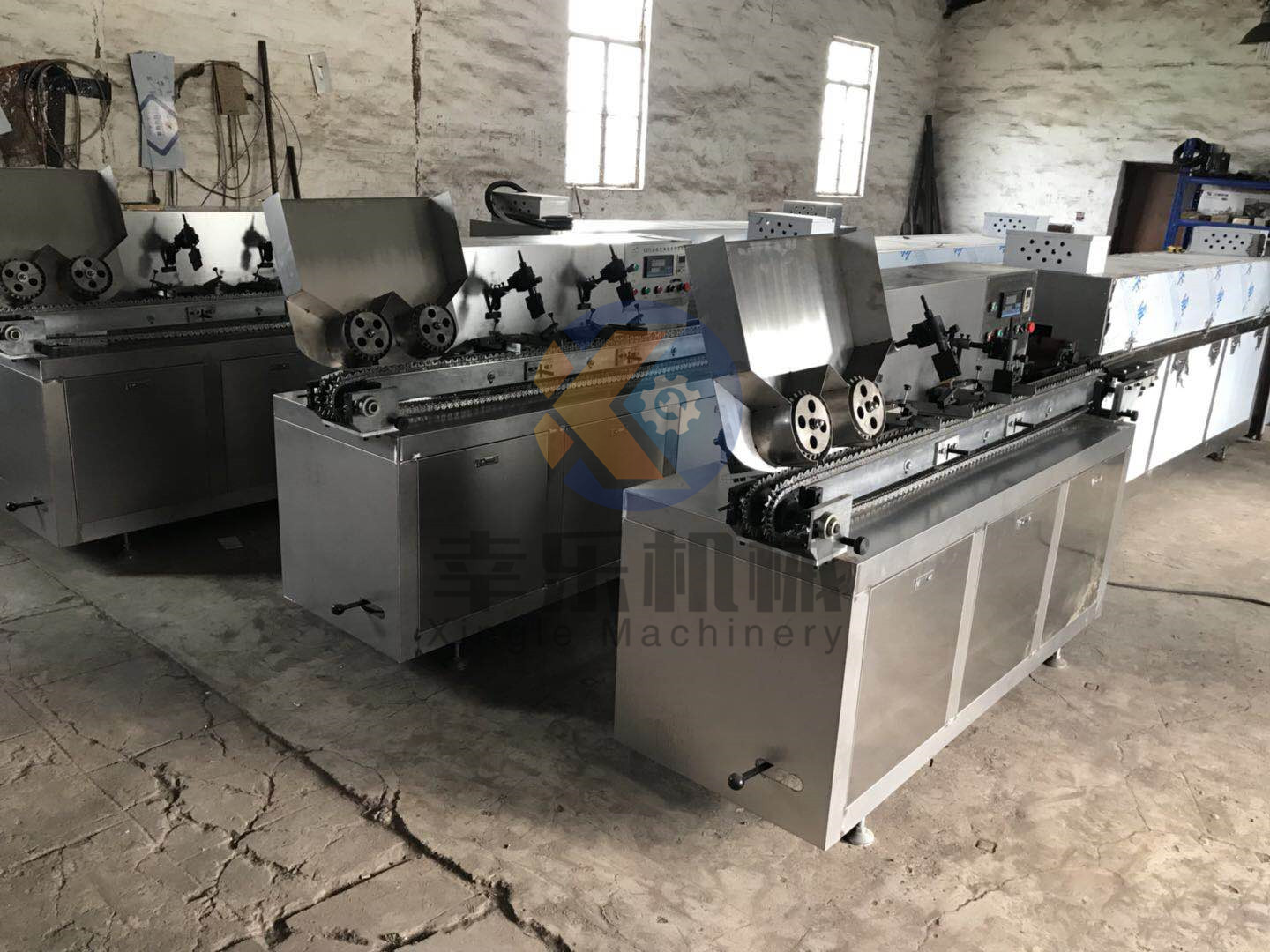

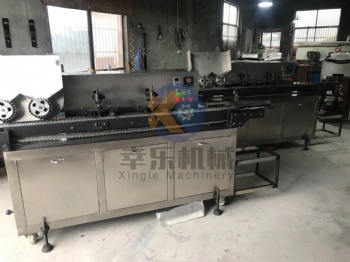

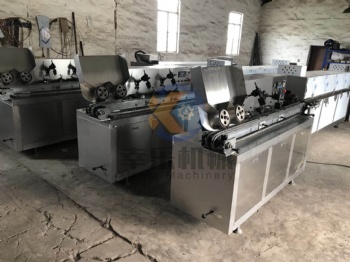

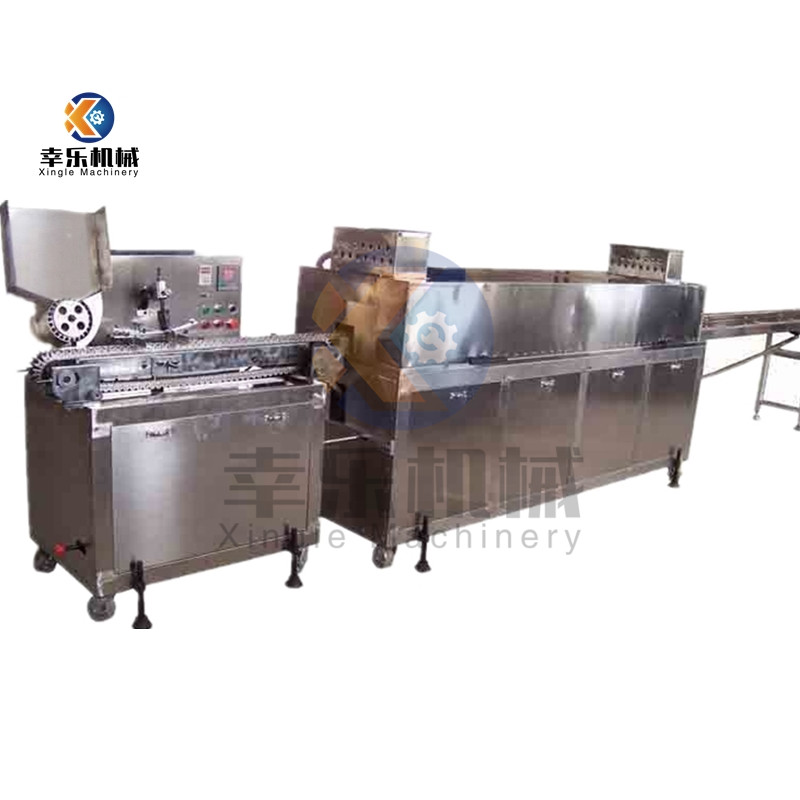

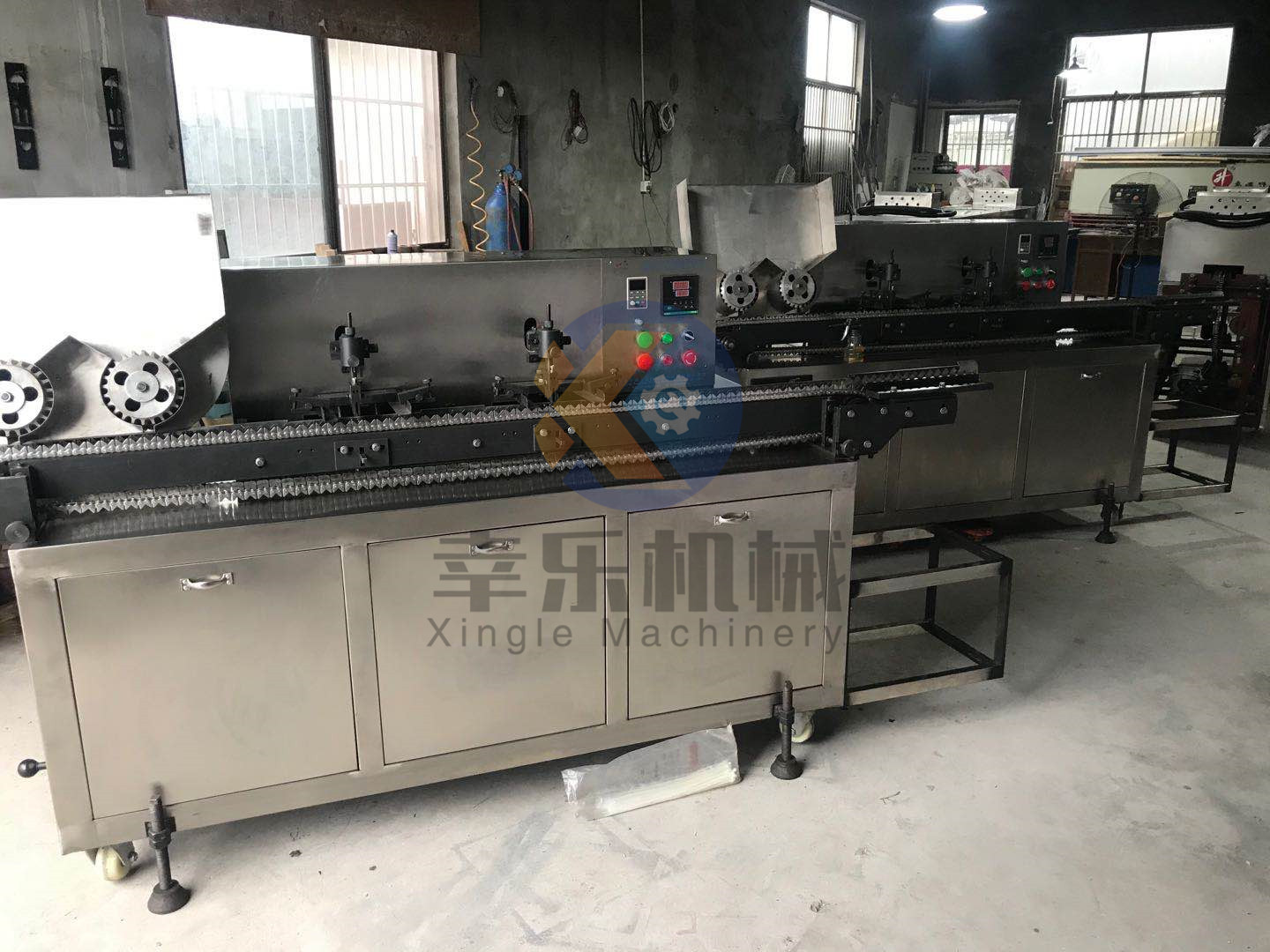

HZG-2 ampoules color glaze sintering printer

HZG-2 ampoules color glaze sintering printer

This product is suitable for sintered printing of ampoules, vials, and tubing bottles.
INQUIRY

HZG-2 ampoules color glaze sintering printer

Main application:

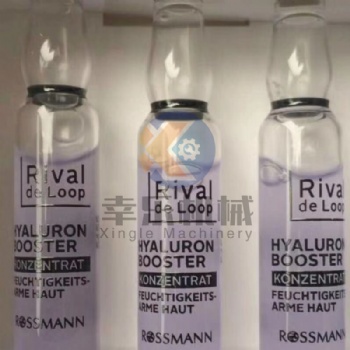

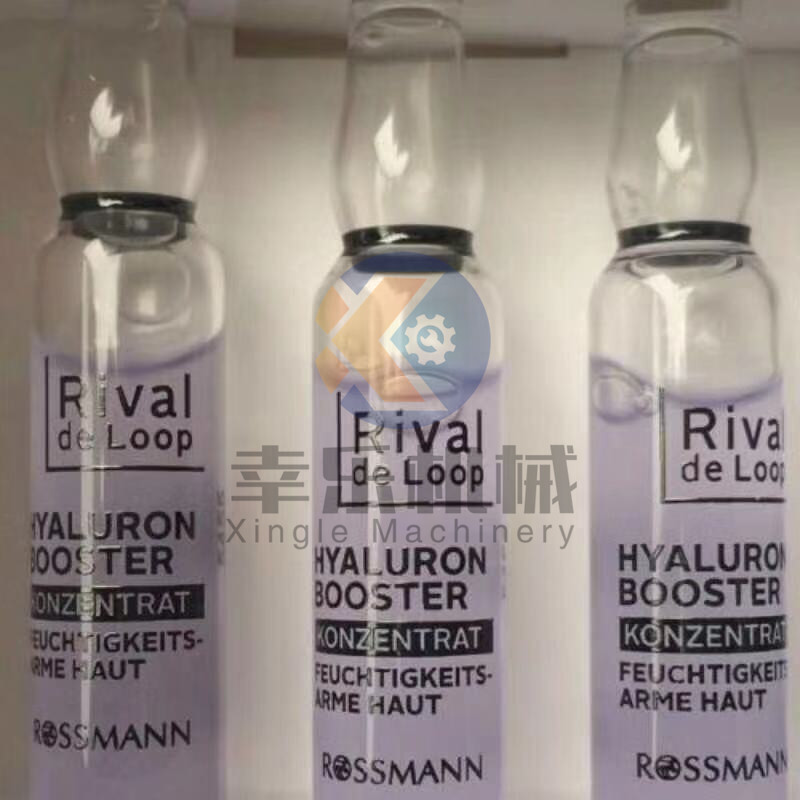

This product is suitable for sintered printing of ampoules, vials, and tubing bottles. Features: The sintered ampoules are clear, glazey, firm, and colorful, and meet the GMP requirements for ampoule printing.

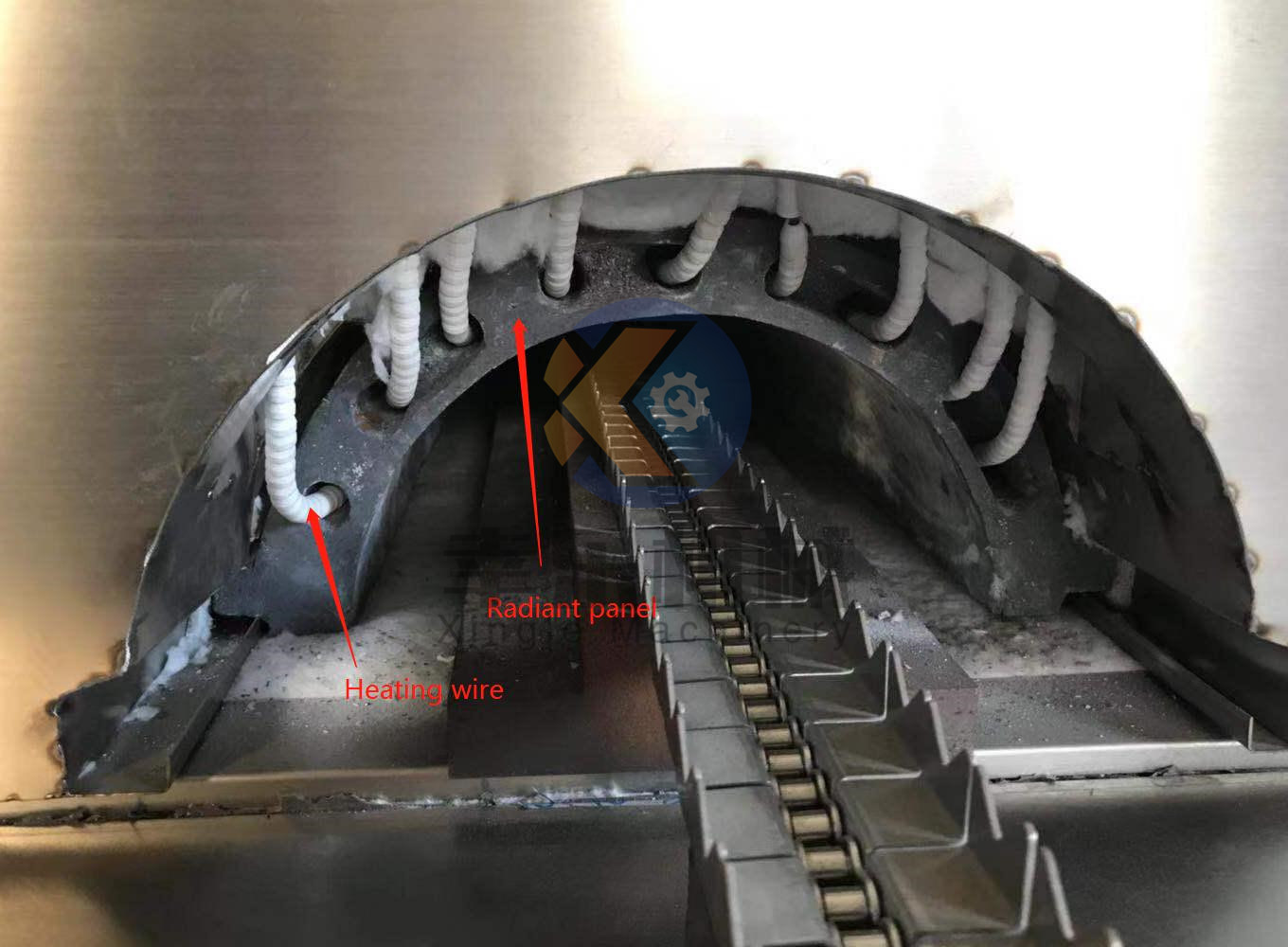

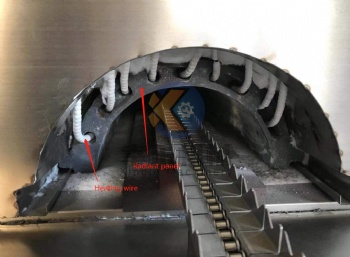

The heating wire heat and the radiant panel radiate，the temperature can heat into 800°C.

Note:

Producing capacity：6500pcs/hour

Motor Power：0.75KW(Frequency)

Electric power：30KW

Package Overall Dimensions：7500×600×1400mm

Main Parameter

Part Name	Size、Material	Unit	Brand	Remarks
Temperature control	smart、50-1200℃	kg	Yuyao Yuandong
Motor	0.75 、6 level	unit	Nanjing Fangli Company
stainless steel	3042B、0.8 1.0 1.2mm	kg	Pohang	Wire drawing board
Insulation cotton	LYGX (Ceramic wool)	kg	Shandong Luyang	Temperature resistance 1200℃
Stainless steel chain	3042B	set	Haimen, Jiangsu
Main spare parts	45#steel	set	TISCO	Self-made
Inverter	0.75、380V	pc	Shanghai Yatai	customizable
Resistance wire	3.5KW,2080 High temperature nickel chromium wire	pc	Taizhou
Electrical components	Contactor transformer etc.	set	Delixi
Gearbox	30:1	pc	Zhejiang Jiepai
