ampoule printer

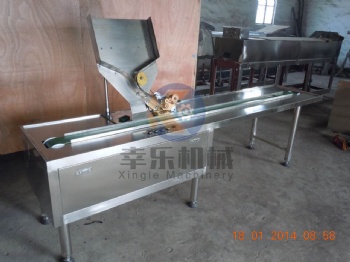

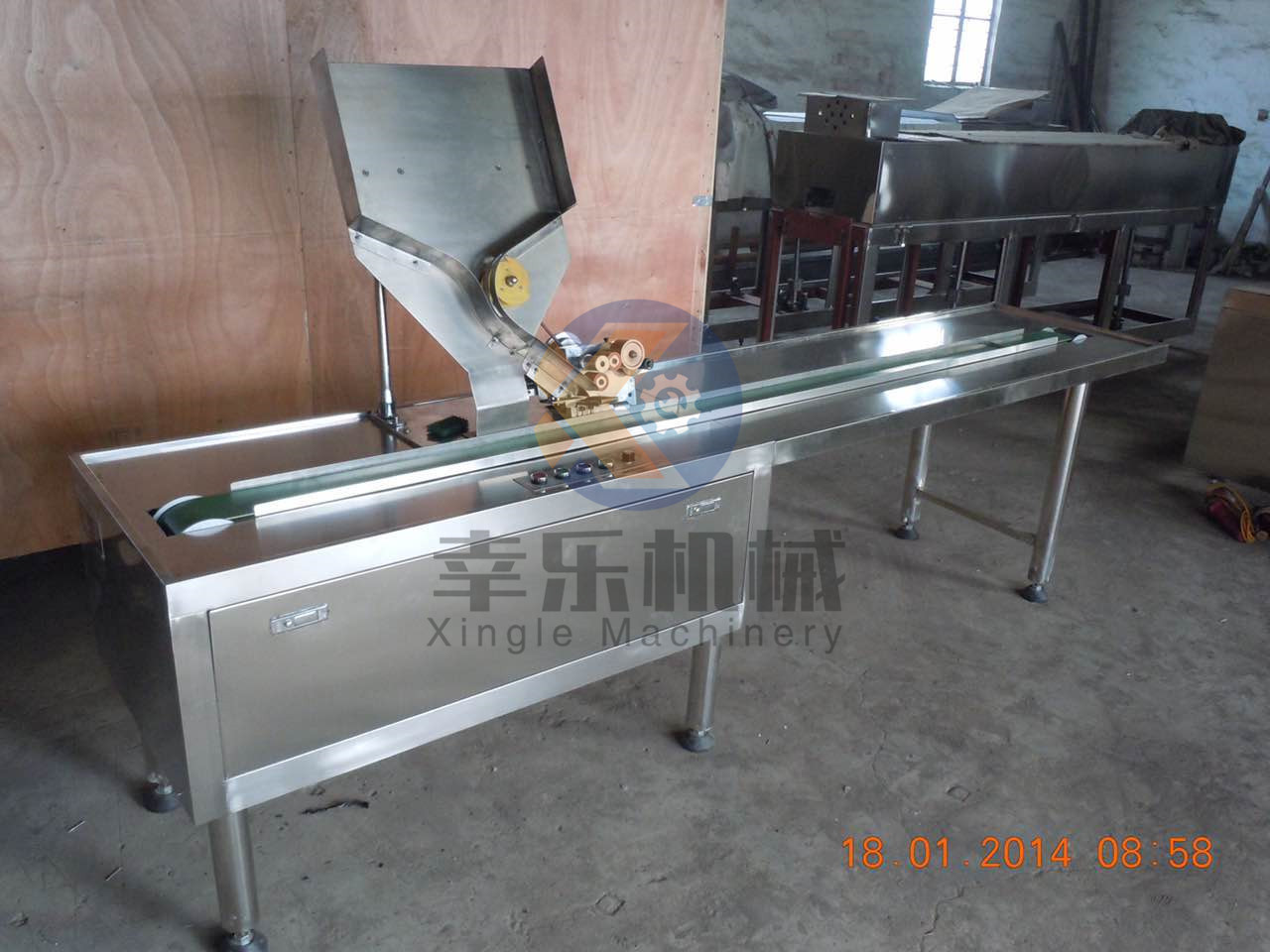

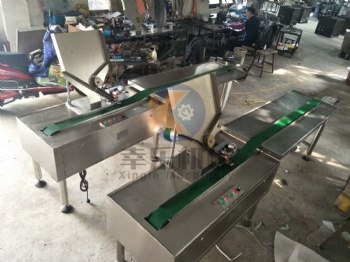

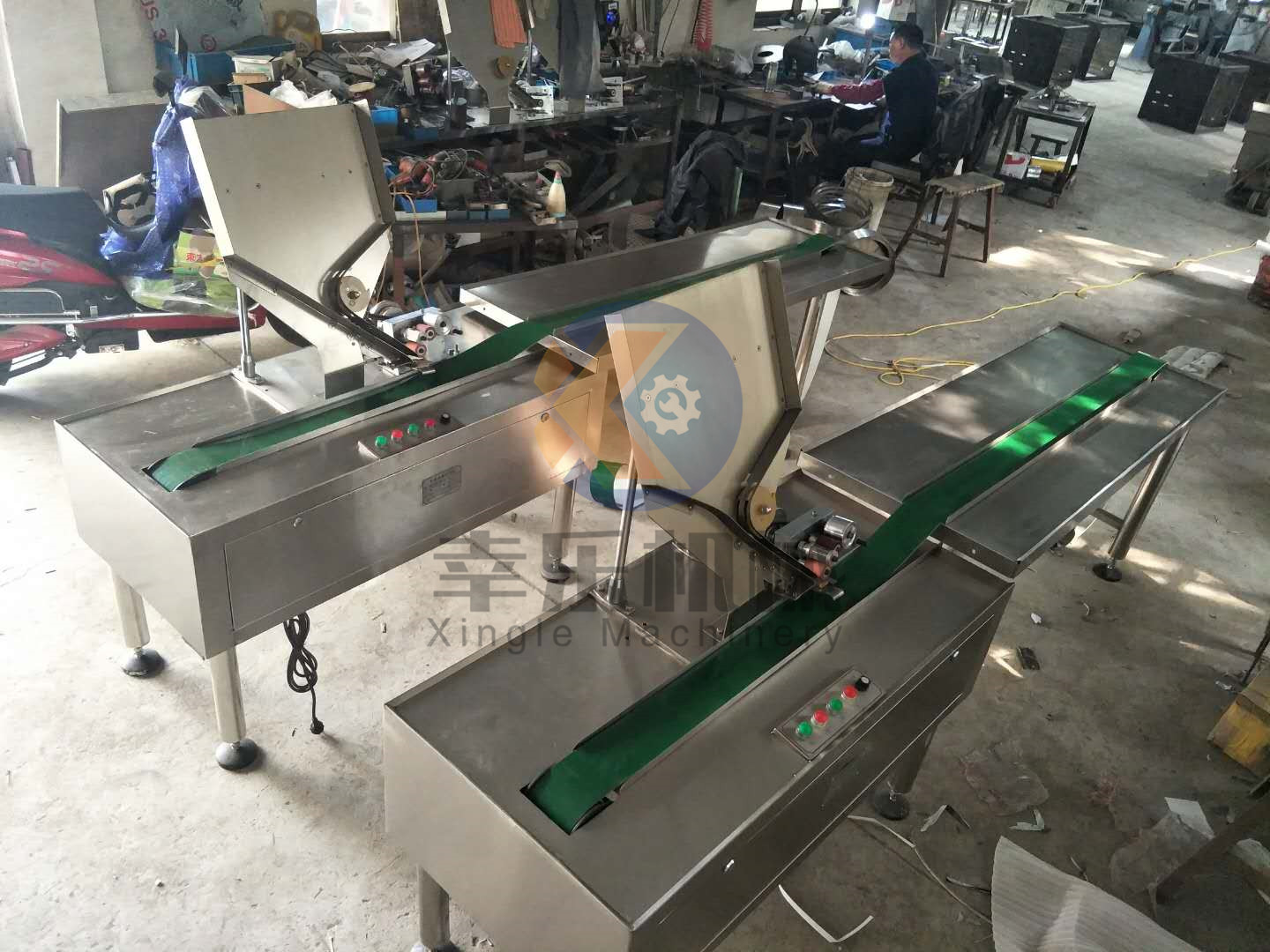

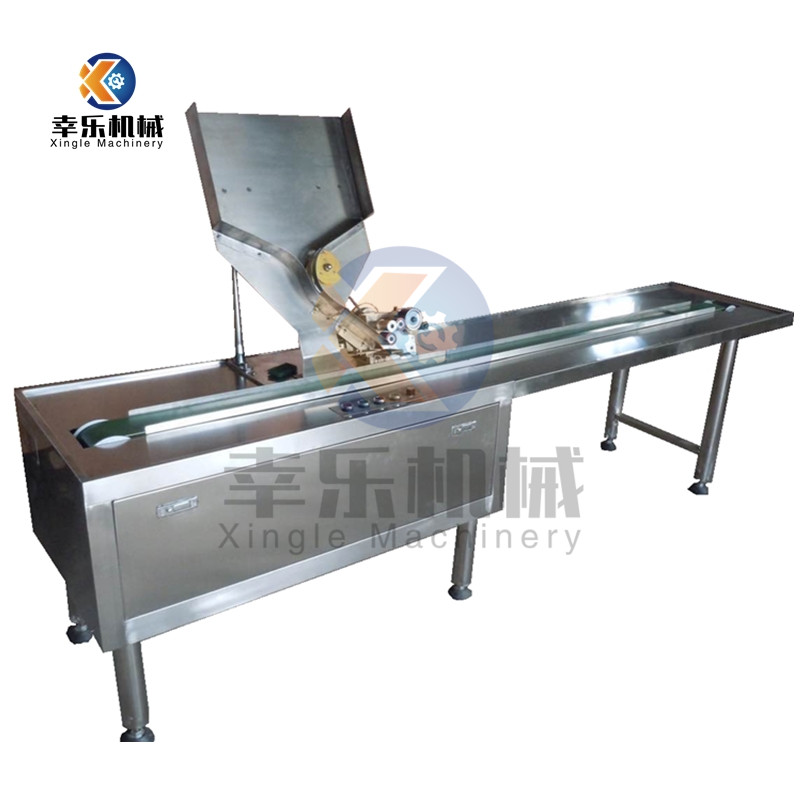

AY series ampoule ink printer

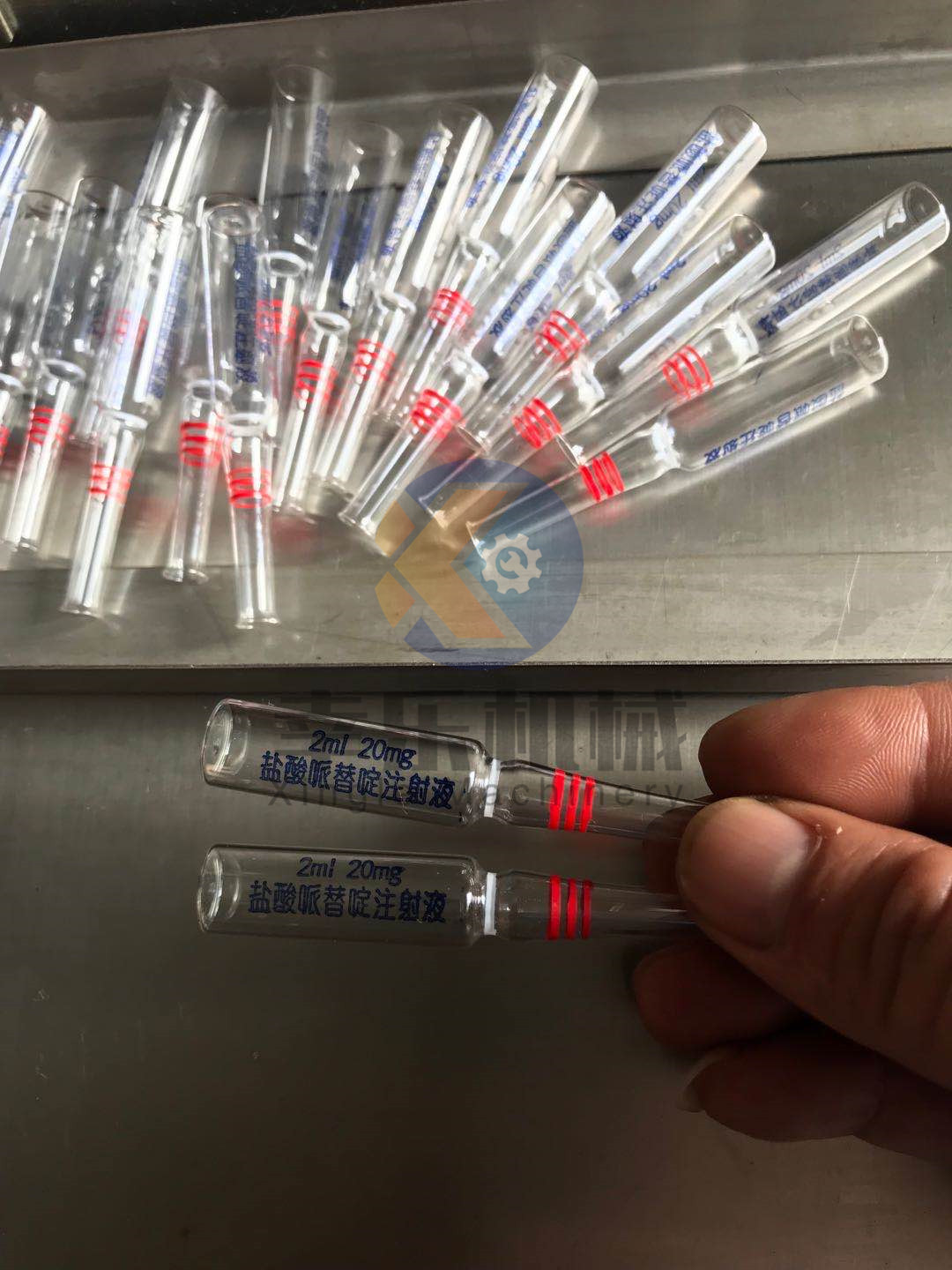

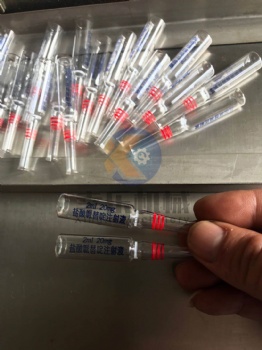

The AY series ampoule ink printer is the main equipment used for printing (name, specification, batch number, trademark) and boxing on the packaging line of pharmaceutical factory water injection and powder injection.
INQUIRY

cheap printer (3).jpg

AY series ampoule ink printer

Main application:
1. The AY series ampoule ink printer is the main equipment used for printing (name, specification, batch number, trademark) and boxing on the packaging line of pharmaceutical factory water injection and powder injection.

2. After years of practice in various injection factories, the equipment has been continuously improved and finalized by our
technical staff. It has the advantages of simple, reasonable, novel, convenient operation and maintenance, stable performance, high production efficiency, and low labor intensity.

3. AY series ampoule ink printers are divided into single color and double color.

Note: Production capacity:

1/2ml 20,000-36,000 pc/hour.

5/10ml 15,000-30,000 pc/hour.

20ml 15,000-30,000 sticks/hour.

Overall Dimensions: 2600*600*1200mm,

The net weight of the whole machine is 150kg.

Main Parameter

Part Name	Material and Specifications	Unit	Brand
Stainless steel	304	kg	Pohang
Angle Iron	A3 4*4	kg	Shanggang
DC Motor	2-400	set	Shanghai Microelectronics
Motor	0.37kw 220V	set	Shanghai Lichao
Gearbox	30 1 40	set	Jiepai
Bearing	202	set	Harbin
Electronic Speed Control	TDGL2-TKV	set	Delixi
Electrical Appliances	/	/	Delixi
Adjuster	60	set	Beijing Wanning
