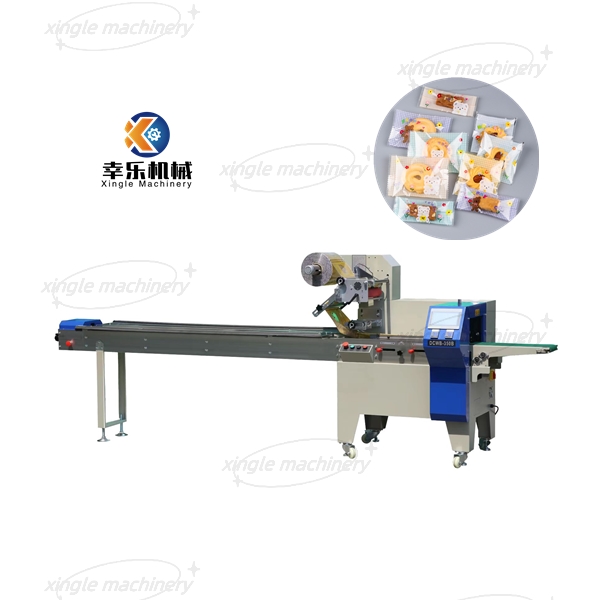

DCWB-350B/D automatic rotary Pillow packaging machine

Main performance and structural features：

1. Three servo controls, the bag length can be set and cut at any time, no need to adjust the unloading, one step to achieve the desired result, saving time and film

2. Human-machine interface, touch screen, convenient and quick parameter setting.

3. Fault self-diagnosis function, fault display is clear at a glance.

4. High-sensitivity photoelectric eye color mark tracking, digital input of sealing and cutting position, making the sealing and cutting position more accurate.

5. Independent temperature PID control, precise temperature control, better suitable for various packaging materials.

6. Positioning stop function, no knife sticking, no waste of film.

7. The transmission system is simple, the work is more reliable, and the maintenance is more convenient.

8. All controls are realized by software, which facilitates function adjustments and technology upgrades and never lags behind.

9. Anti-cutting function, non-stop, can prevent cutting, improve machine operating efficiency and reduce equipment loss. (optional)

10. Anti-empty bag function, material shortage detection, film cutting knife stop, push material automatically replenished. No empty packages, no wasted packaging. (optional)

11. End sealing and gusseting device makes the bag shape more beautiful and improves product quality. (optional)

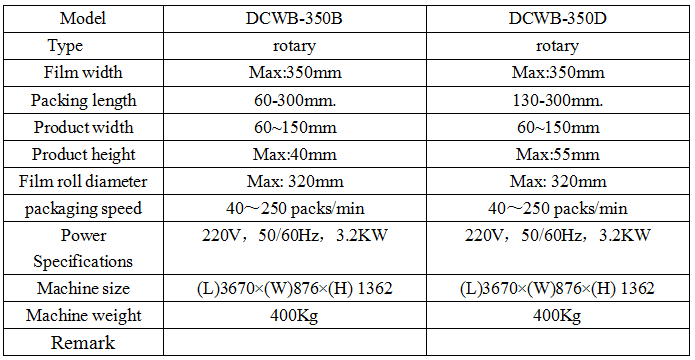

Product parameters：

Product application：

The pillow-type automatic packaging machine is suitable for various regular objects such as biscuits, rice noodles, snow cakes, egg yolk pies, chocolate, bread, instant noodles, moon cakes, medicines, daily necessities, industrial parts and so on.
