Ampoule filling and sealing machine

6 needles ampoules filing and sealing machine

6 needles ampoules filing and sealing machine

Applicable to the drawing of the ampoule filling and sealing of the pharmaceutical factory.
INQUIRY

6 heads.jpg

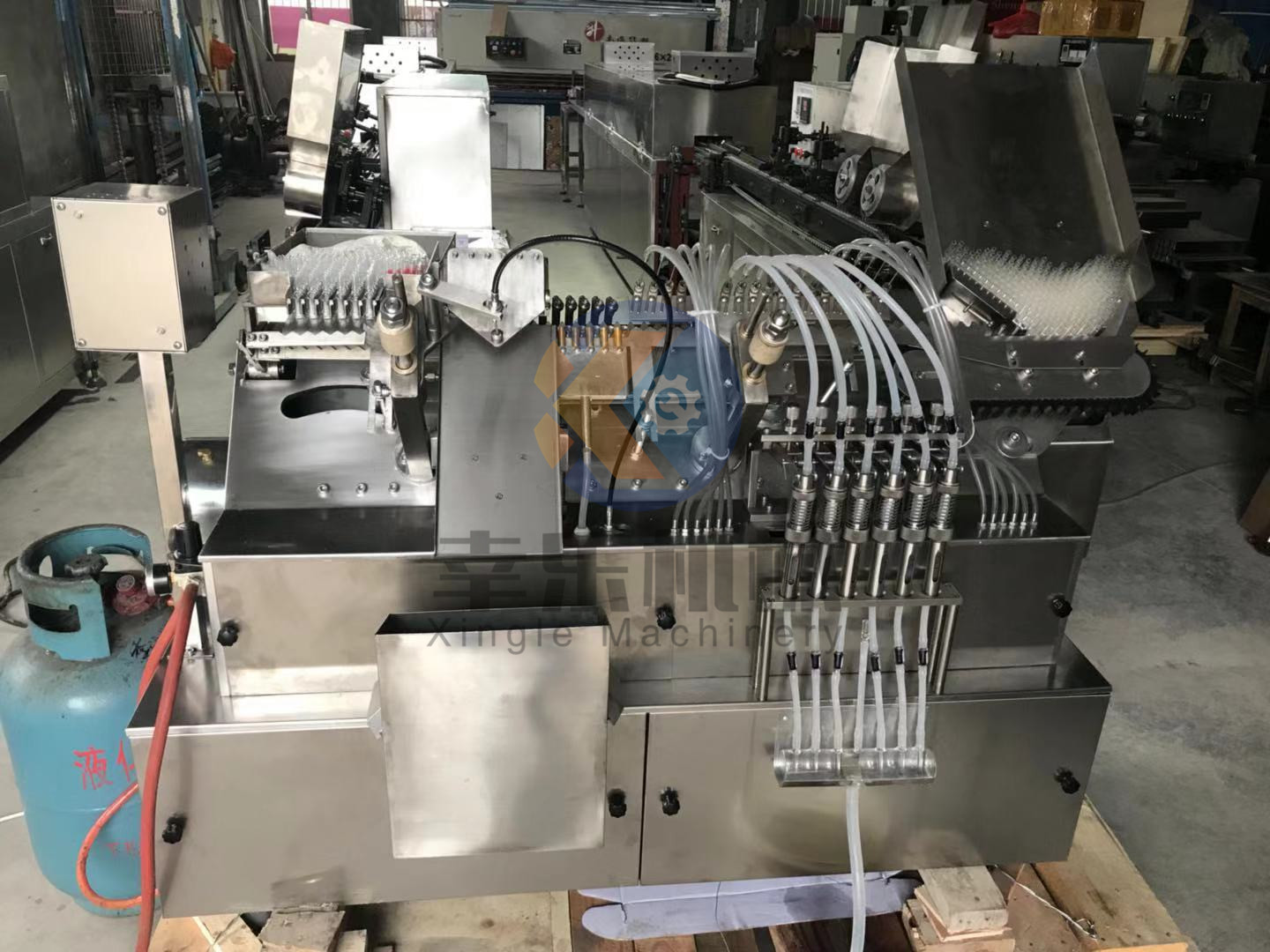

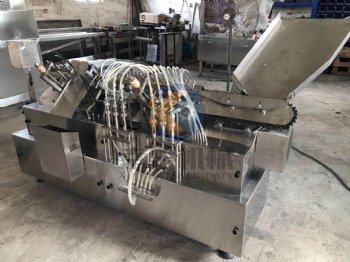

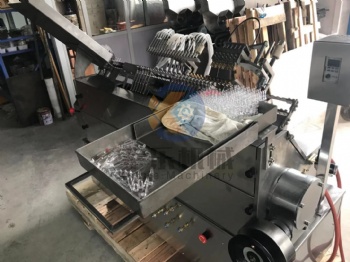

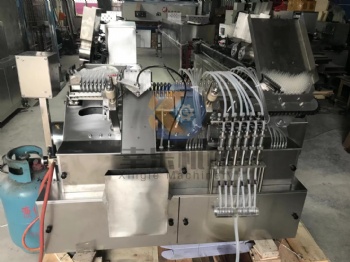

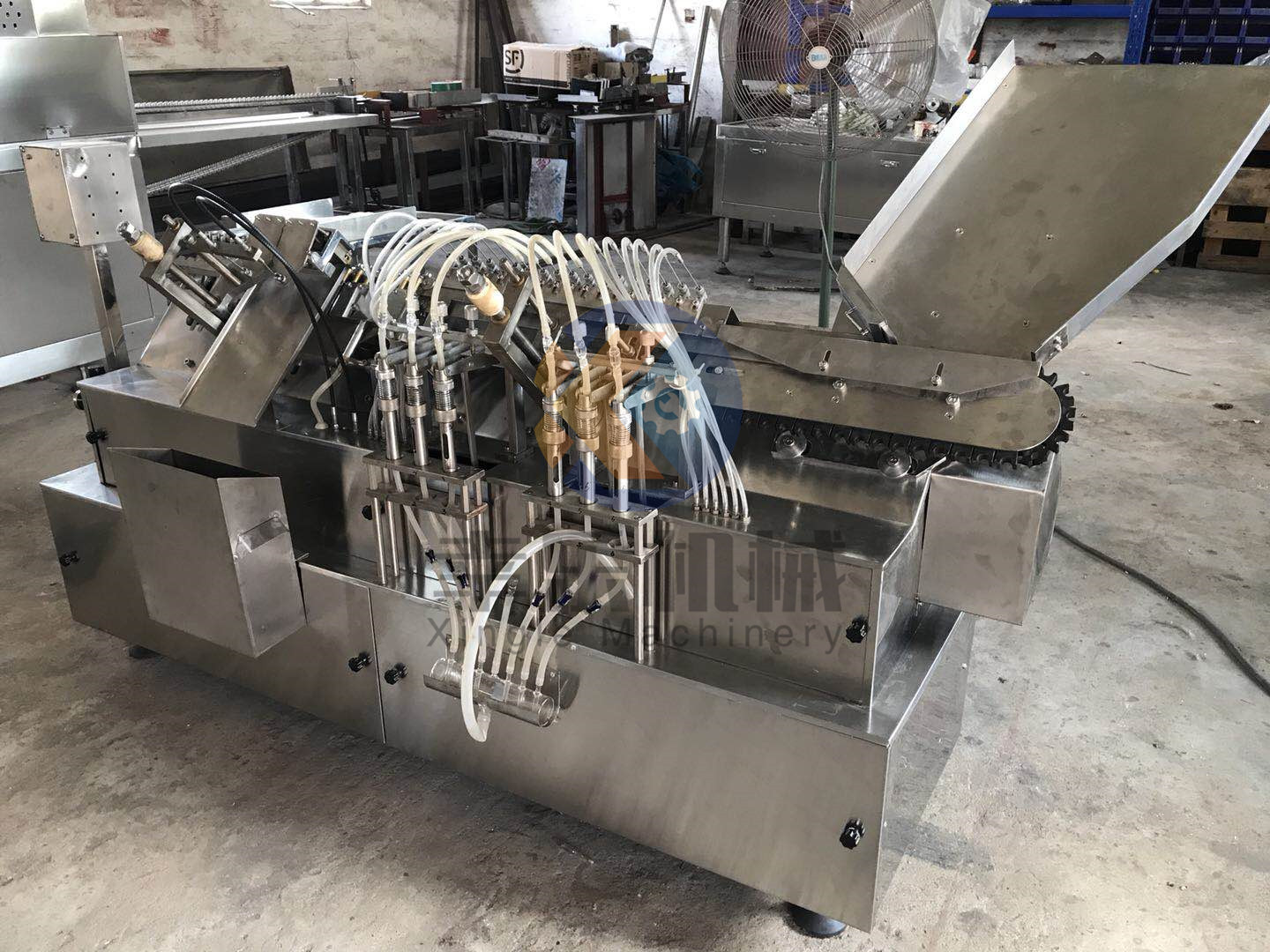

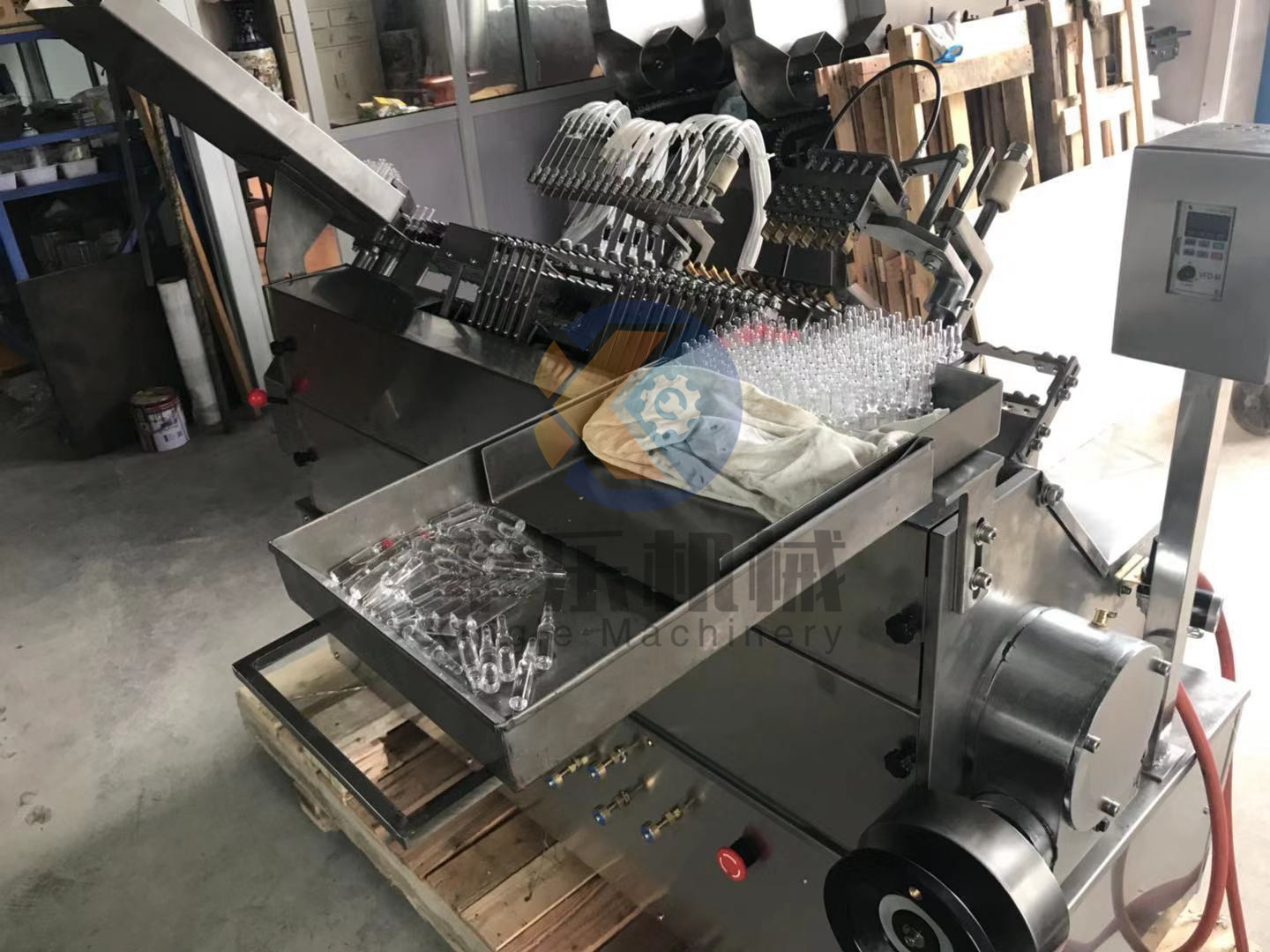

6 needles ampoules filing and sealing machine

Introduction:
1. Applicable to the drawing of the ampoule filling and sealing of the pharmaceutical factory.

2. This machine is a 6-station stepping transmission system. Each time, 6 bottles are used as a group, which are sent to each process point to complete the bottle feeding.

3. The former is filled with nitrogen, filled with medicine, and then filled. Nitrogen, preheating, wire drawing and other processes.

4. With an oxy-hydrogen generator, the interface is perfectly matched. The drive rack is stainless steel and the pressure bottle plug fits tightly. See the product manual for the random accessories and configuration table.

Features:

The transmission cam of the machine is a steel casting, which is not easy to wear. The rotating cam is guaranteed for 2 years, and there is wear in 2 years. The manufacturer is responsible for replacement.

Performance test and acceptance method: according to the factory standard test.

Main Parameter

Name	6 needles ampoules filing and sealing machine
Model	ALG- 5ml (with 1-3ml)
Producing capacity	9000-12000pcs/h
Total motor power	0.55KW
Matrial	Stainless steel（304）
Overall size	1950×950×1300mm
Motor	M28014/380V	Shanghai Lichao Motor
Gearbox	WCH	Shanghai Pujiang Variable Speed Machine Factory
Frequency converter	0.75	Delta
