Ampoule filling and sealing machine

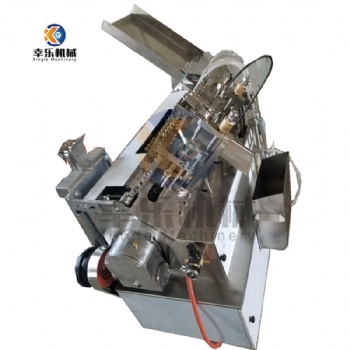

8 needles ampoules filling and sealing machine

8 needles ampoules filling and sealing machine

It is suitable for ampoules filling and sealing machine in pharmaceutical factories.
INQUIRY

8 zzhen (3).jpg

5-10ml 8 needles ampoules filling and sealing machine specification

Introduction:
1. It is suitable for ampoules filling and sealing machine in pharmaceutical factories. This machine is an 8-station stepping
transmission system. Each time a group of 8 bottles is sent to each process point to complete the bottle delivery. Nitrogen
filling, medicine filling and post filling are completed. Nitrogen, preheating, drawing sealing and other processes.

2. Use the oxyhydrogen generator, the interface is fully matched. The transmission rack is made of stainless steel, and the bottle
pressing bolt is closely matched.

Features:

The transmission cam of this machine is a cast steel part, which is not easy to wear. The rotating cam is guaranteed to be worn within 2 years and 2 years.

Performance test and acceptance method: according to the factory standard test.

Main Parameter

Name	8 needles ampoules filing and sealing machine
Model	ALG 5-10ml（8needles）
Producing capacity	10000-12000pcs/hour
Total motor power	1.5KW
Matrial	Stainless steel（304）
Overall size	2300×950×1300mm
Motor	M28014/380V	Shanghai Lichao Motor
Gearbox	WCH	Shanghai Pujiang Variable Speed Machine Factory
Frequency converter	1.5	Delta
1-2 ml 8 needles ampoules filling and sealing machine	12000-16000pcs/hour
