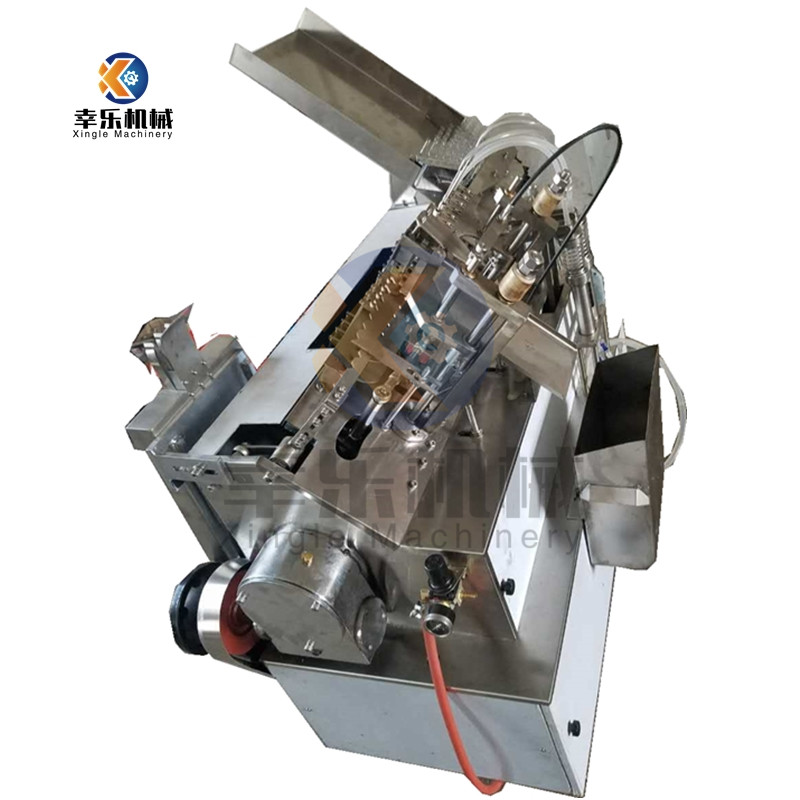

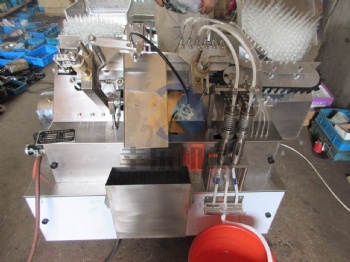

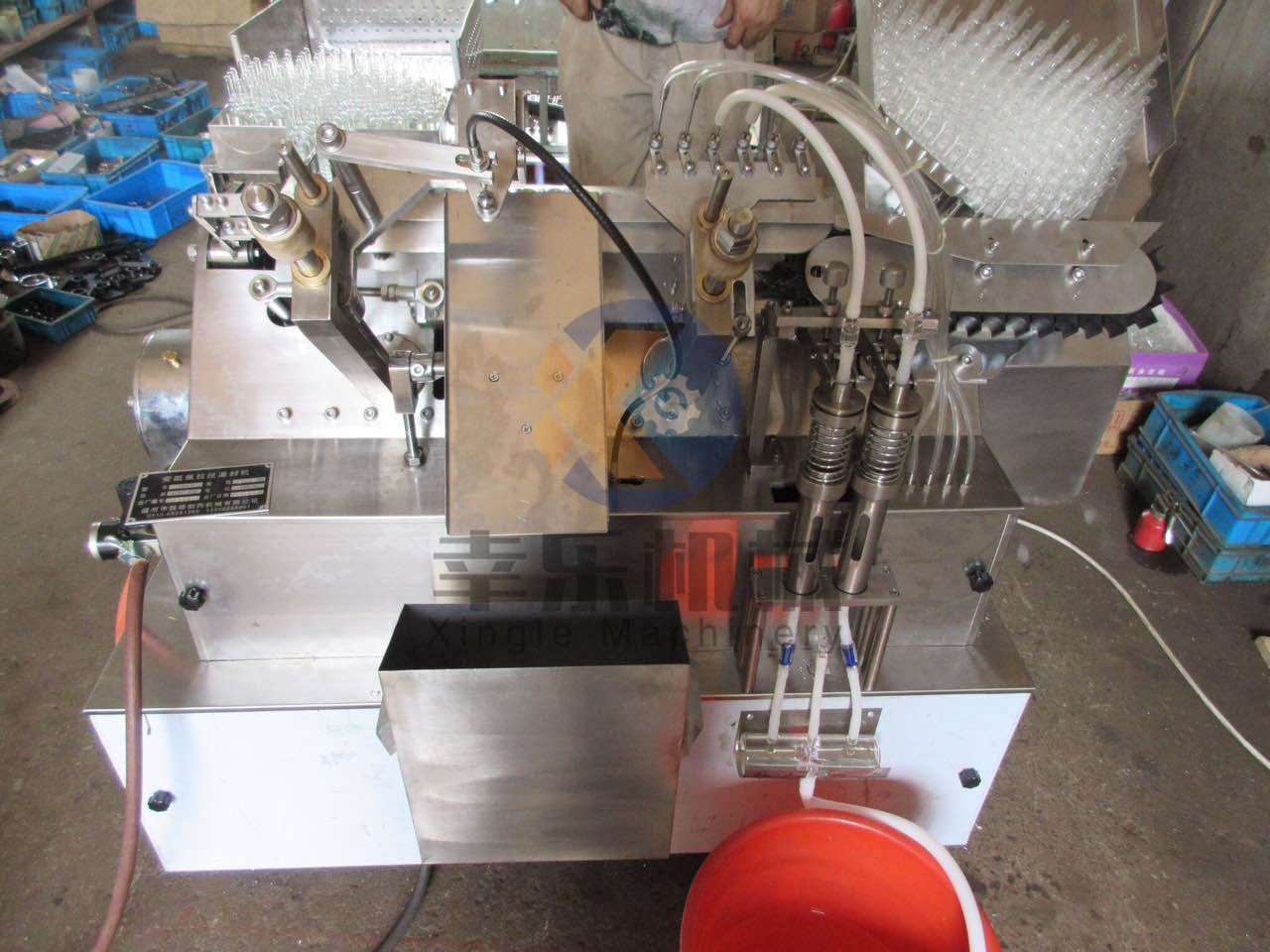

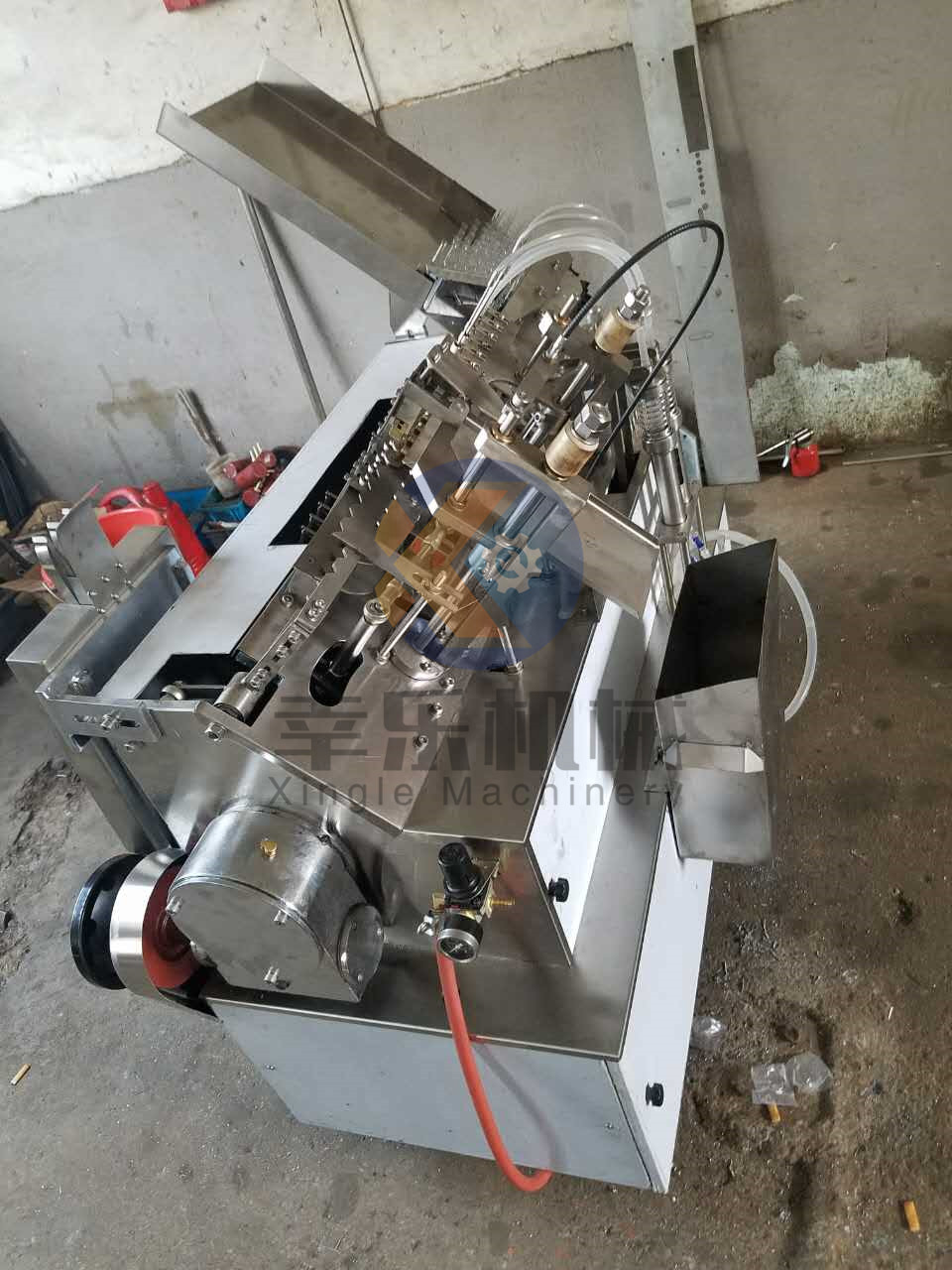

Ampoule filling and sealing machine

2 needles ampoules filing and sealing machine

It is suitable for filling and sealing of pharmaceutical bottles in ampoules under aseptic conditions.
INQUIRY


2 needles ampoules filing and sealing machine

Performance and introduction:
It is suitable for filling and sealing of pharmaceutical bottles in ampoules under aseptic conditions.
This machine is a two-step transmission system. Each time, two bottles are grouped and sent to each point separately. The separation and delivery of the bottle are completed. The nitrogen is filled before, the medicine is filled, the nitrogen is preheated, and last step is is sealed ampoules.

Performance test and acceptance method: The industry requirements are tested according to the factory standards.

Main Parameter

Name	2 needles ampoules filing and sealing machine
Model	Z-LSAG
Producing capacity	1800/4200pcs/hour
Total motor power	0.37kw
Matrial	Stainless steel（304）,the parts contact medicine（316L）
Overall size	1300×700×1300 mm
Oxygen consumption	2-3×100
Liquefied gas consumption	200L/hour
