Blister packing machine

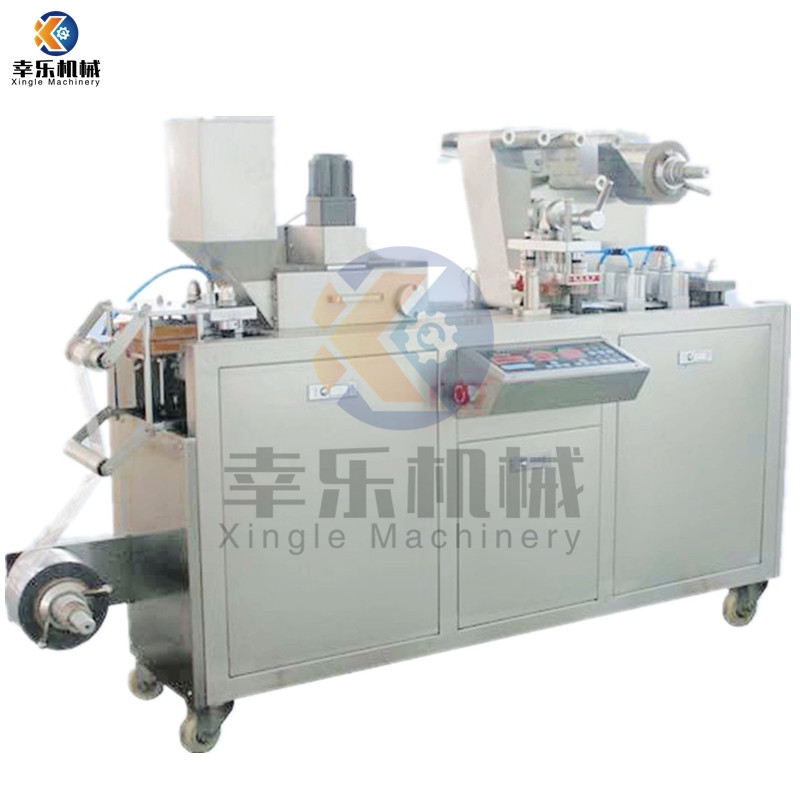

DPP-80 blister packing machine

It's widely used in pharmaceutical, foodstuff, hardware industry with aluminum-plastic packing.
INQUIRY

DDP80鍥剧墖 (1).jpg

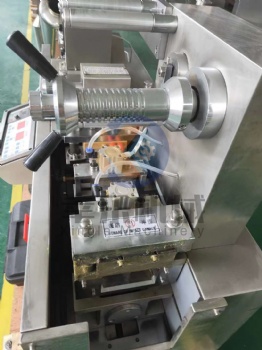

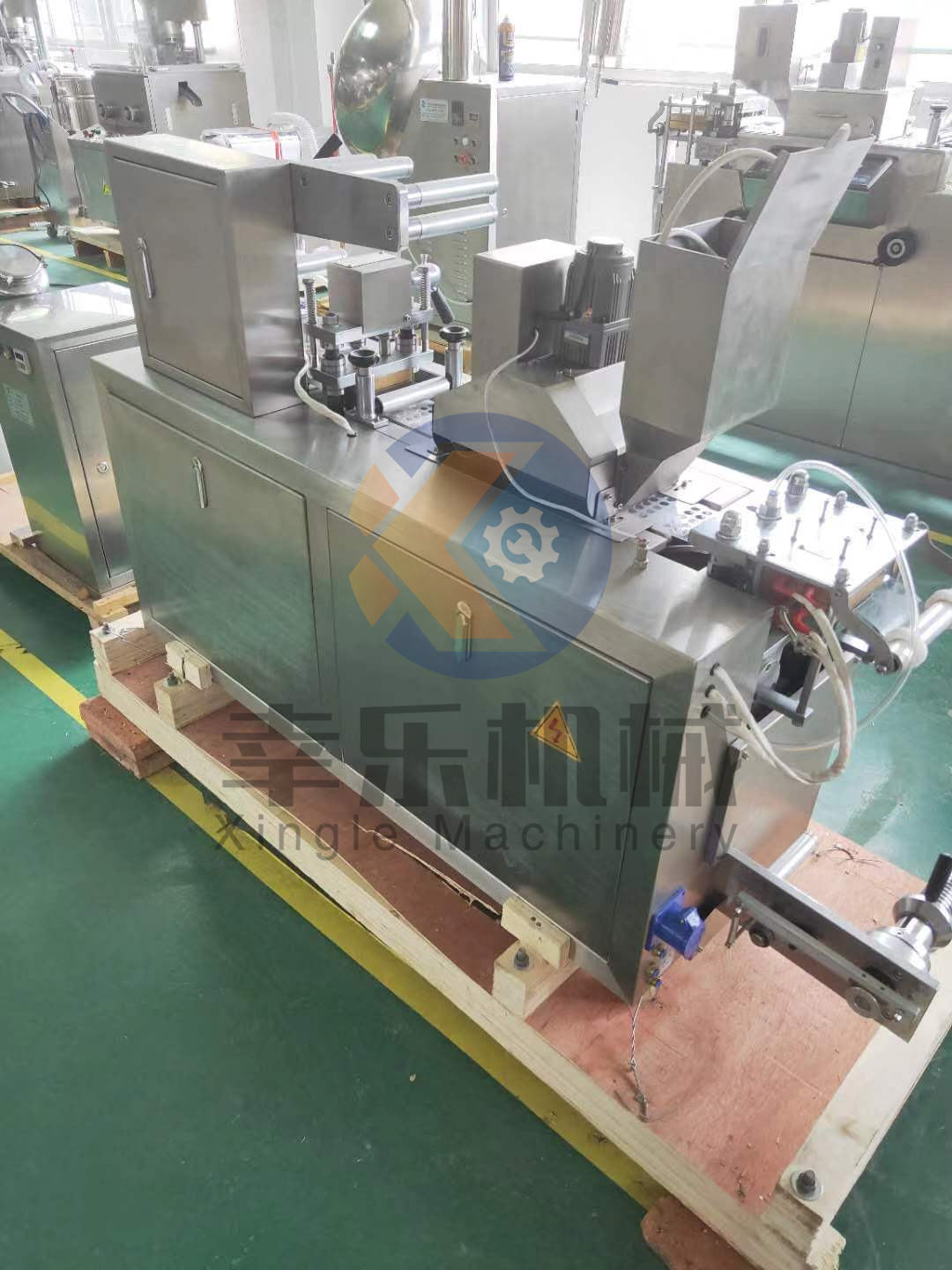

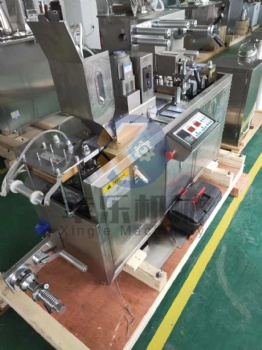

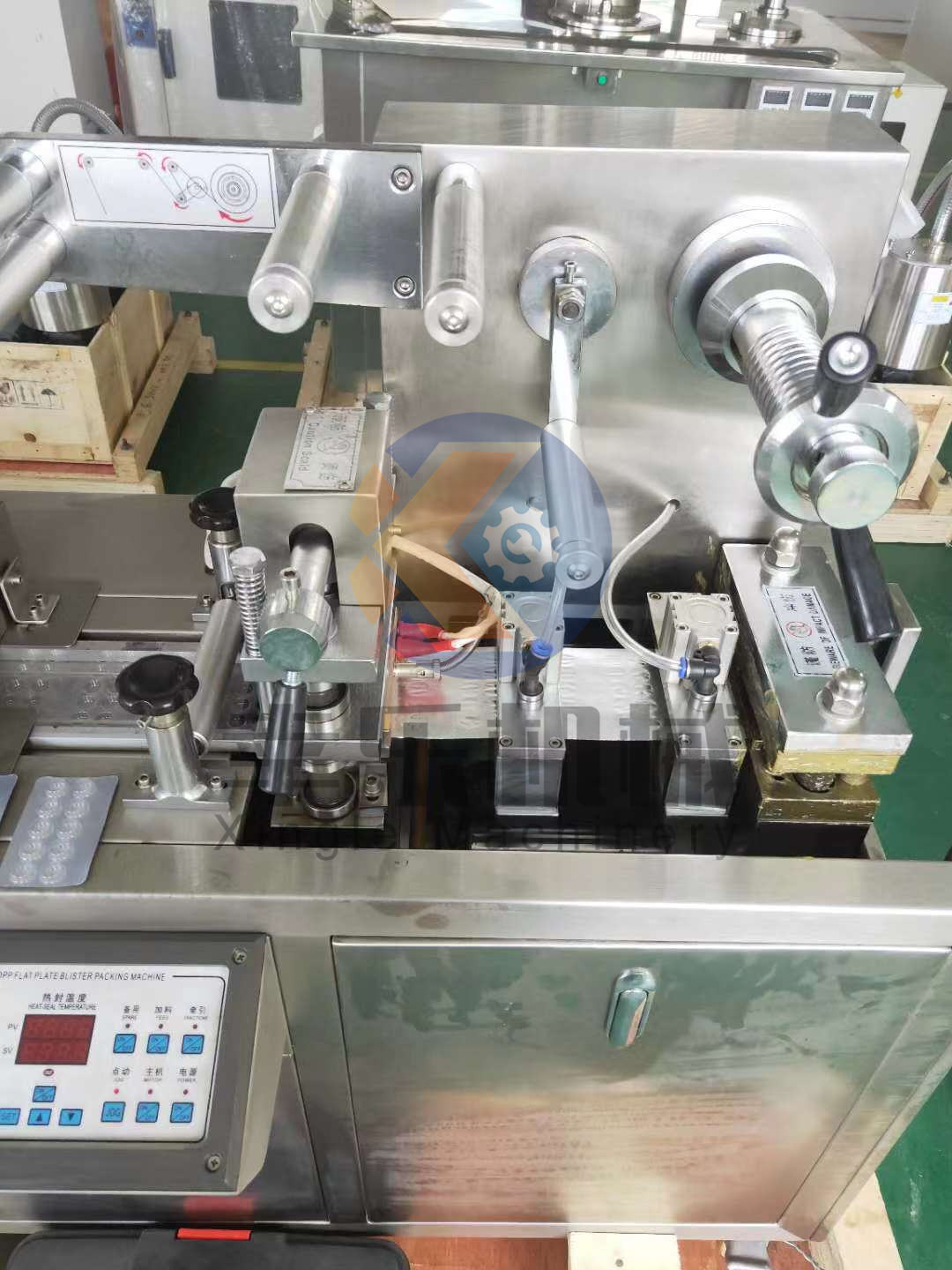

DPP-80

1. This blister packing machine is special designed for dosage room of hospital, middle or small pharmaceutical and nutrition products factory.

2. It has following features: small machine-body, flat structure mould, easy to operate and change the mould, multifunction, travel can be adjustable, durable in use.

3. It's widely used in pharmaceutical, foodstuff, hardware industry with aluminum-plastic packing.

4. It's the ideal packing equipment for variety and small batch products packing.

Product Paramenters

Model	DPP-80
Punching Times (time/min)	10-40
Production Capacity (pcs/h)	2400
Max. Forming Area and Depth	7011026 mm
Standard Stroke Range	20-70 mm
Standard Plate	80*57 mm
Air Pressure	0.6-0.8 MPa
Total Power Supply	1.8 kw
Main Motor Power	0.55 kw
PVC Hard Pieces	(0.15-0.5)*80mm
PTP Aluminum Foil	(0.02-0.035)*80mm
Mold Cooling	Running water, Circulation water
Dialysis Paper	(50-100)g*80mm
Overall Dimension	1400460890mm
Noise Index	<75 dBA
Weight (kg)	350
