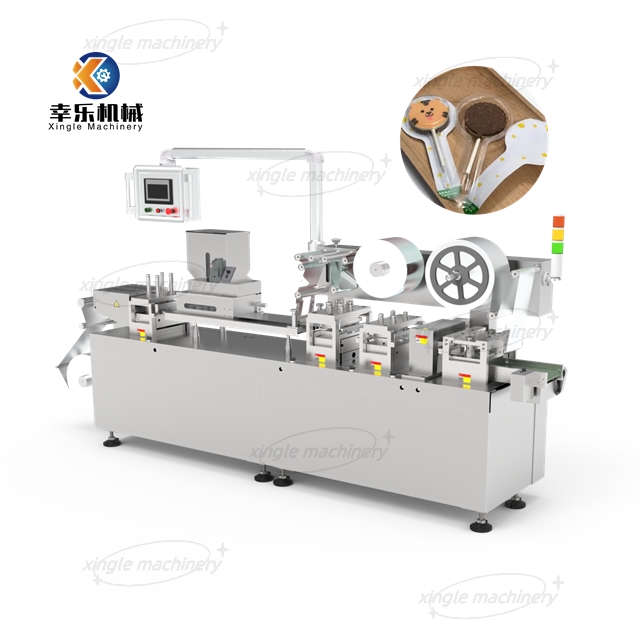

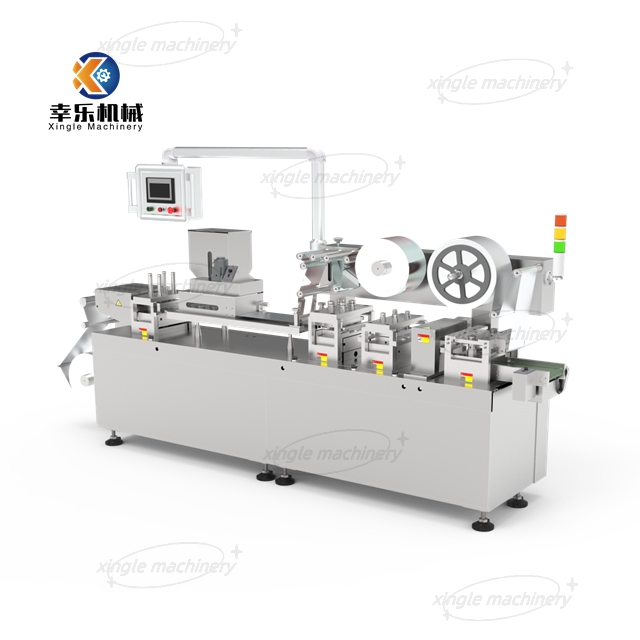

DPP-160A ALU-PVC Blister Packaging Machine

Product description:

DPP-160A is a blister packaging machine specially used in pharmaceutical, food and other industries. This type of packaging machine is usually equipped with a stepper motor drive system, and its operation is precisely controlled by a programmable logic controller (PLC). It can package products of various shapes and sizes, including but not limited to tablets, capsules, and candies.

Features:

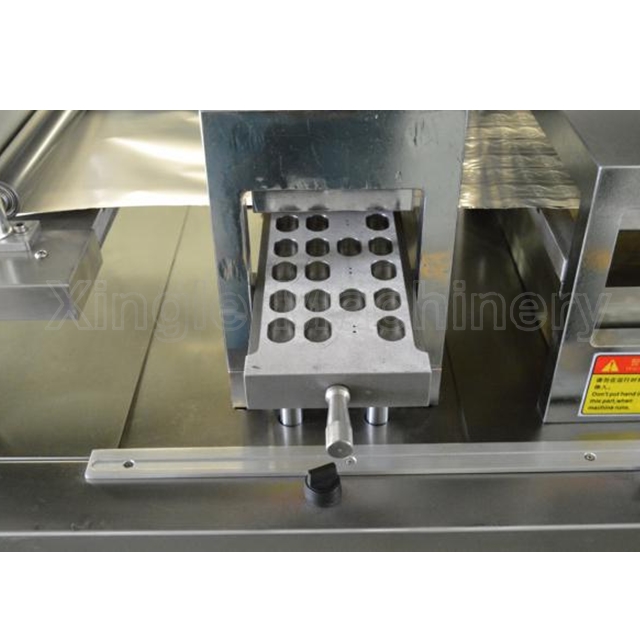

1.Quickly change the mold, it only takes 15 minutes to change the mold, saving labor costs.

2.Pulling length can be adjusted. Mold is fixed by located groove so that it's easy to change mold. The machine heats the PVC through heated board and forms by compressed air frothing.

3.Speed is controlled by invert. It Adopts the interface of human-machine and PLC controller. Adopt universal feeder for feeding.

4.With automatic feeder, we can design the mould and feeder according to customer’s requirement.

5.The machine gets the function for Easy Cutting line embossing, batch number embossing and wasted packaging material rewinding.

6.Step motor is adopted on the machine for precise controlling on pulling length and saving packing material.

7.The heating molds will automatically separate when the machine stops, which contributes to protect the packing material from heated mould.

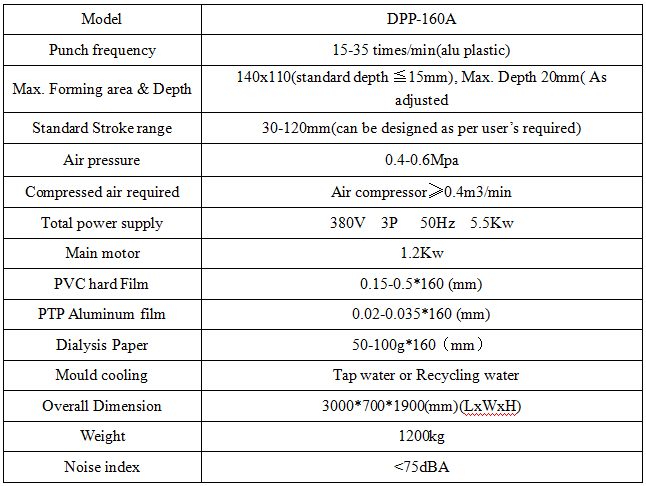

Product parameters：
